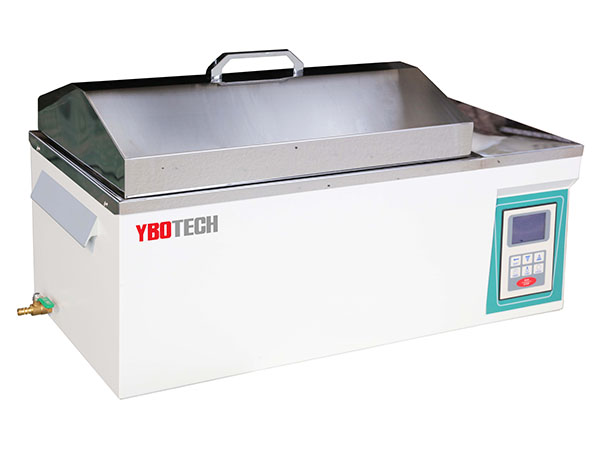

Shaking Water Bath

Ybotech Shaking Water Bath is laboratory equipment made from a container filled with heated water. It is used to incubate samples in water at a constant temperature over a long period of time. Most water baths have a digital or an analogue interface to allow users to set a desired temperature, but some water baths have their temperature controlled by a current passing through a reader. Utilisations include warming of reagents, melting of substrates or incubation of cell cultures. It is also used to enable certain chemical reactions to occur at high temperature. Water baths are preferred heat sources for heating flammable chemicals, as their lack of open flame prevents ignition. Different types of water baths are used depending on application. For all water baths, it can be used up to 99.9 °C. When temperature is above 100 °C, alternative methods such as oil bath, silicone bath or sand bath may be used.

Feature
  • Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.
  • High-precision temperature control, resume operating automatically if power off unexpectedly.
  • High-precision speed control: PID controller, Moto speed stable and accurate. Slow start design, automatically locked after speed out of control, adjustable start speed prevents splashing of shaking bottle liquid.

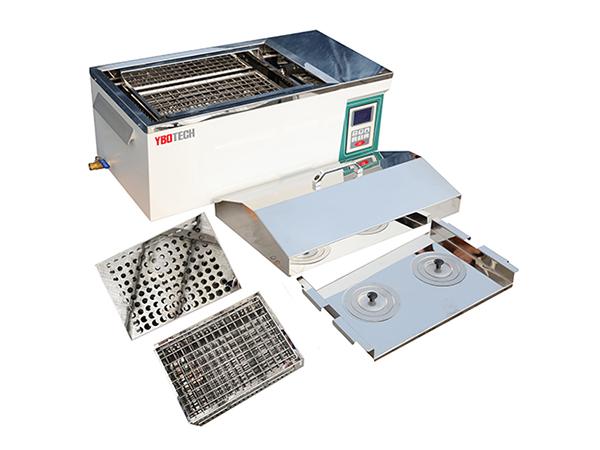

  • Tube rack and water bath flask seat for standard configuration.

Technical Specification

Model YWS-30
Function Oscillation + thermostatic water bath
Technical Specification Temp. Range RT ~ 100℃
Temp. Accuracy 0.1℃
Temp. Resolution ±0.1℃
Temp. Uniformity ±0.2℃
Oscillation Amplitude 16 or 24mm
Oscillation Frequency 20 ~ 180rpm
Oscillation Accuracy ±1rpm
Power Consumption 1.5Kw
Power Supply AC220V ± 10%
Structure Water Tank Stainless Steel
Outer Shell Cold rolling steel
Upper Cover Stainless Steel
Insulating Layer Polyurethane
Heater Stainless Steel
Driving Mode Crankshaft + double link + four wheels
Shelf Stainless Steel
Controller Temp. control Mode PID Controller
Setting Mode Touch Button
Temp. Display LCD
Speed Display 0 ~ 9999 min
Operation Fixed value operation, timing function, auto stop, quick stop/start
Temp. Sensor PT100
Speed Sensor Hoare
Additional Deviation correction, menu keys lock, power-off memory
Safety Device Over temp. alarm, menu locked, water full/shortage protection, Motor shaft lock protection
Configuration Water Tank Size 500x310x200mm
Exterior Size 828x360x425mm
Packing Size 910x500x600mm
Spring shaking Basket 395x250mm
Max. Capacity of Shaking Basket 100mlx12pcs/250mlx8pcs/500mlx6pcs
Volume 31L
Max. Loading of Shaking Basket 5kg/layer
N.W./G.W. 20/30kg
Accessories Water bath flask seat, tube rack
