MCP-170 CO2 Incubator - Ybo Technologies Co., Ltd.

Ultrassay MCP-170 CO2 incubator is designed to protect valuable samples while optimizing cell growth.

LCD touch screen: Easy to observe and operate;

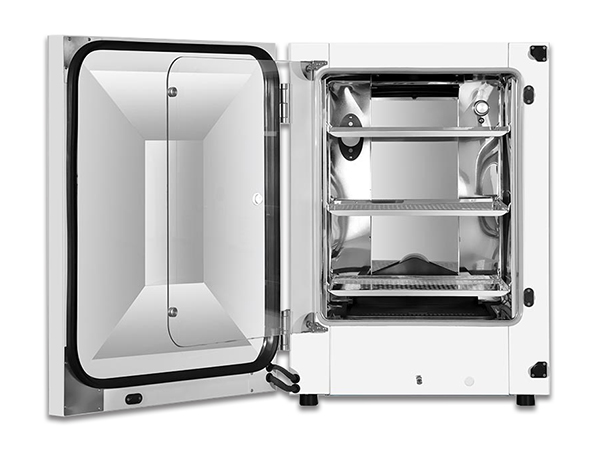

Inner glass door: Convenient to observe the cell stte duringe culturing activity in the chamber;
Access port: Monitor the temperature, RH and CO2 concentration data in the chamber;
HEPA air filtration: Provide ISO Class 5 Clean room-like air quality conditions within only five minutes after a 30 seconds door opening;
Integrated humidity pan: Built-in design 3L storage capacity;
180℃ dry heating sterilization
Optional O2 tri-gas
Top IR sensor

Technical Specification

Model	MCP-170
Temperature
Type	Direct Heat & Air Jacketed
Range	3℃ above ambient to 55℃
Uniformity	≤ ±0.3℃
Accuracy	< ±0.1
Recovery	≤10 mins
Ambient	18~34℃
Co2
Controller	PID Microcomputer
Range	0-20%
Accuracy	±0.1%
Sensor	TC (IR optional)
Recovery	≤5 mins
Sterilization	180℃ dry heating
Humidity
Mode	Integrated pan
rH%	91% @ low rH mode, 94%@ high rH mode
Recovery	15 mins
O2 (Optional tri-gas type)
Controller	PID Microcomputer
Range	1~20.7%
Accuracy	±1%
Sensor	Zirconia
Recovery	O2%@1.0%: 24 mins O2%@5.0%: 10 mins
Basic Parameters
Capacity	170L
External dimension	670x825x920mm
Internal dimension	490.5x560x620.5mm
Shelf Qty	3pcs (Standard)
Max shelf Qty	Up to 7 pcs (Optional)
Shelf size	450x485mm (big) 450×440 (small)
Max. Loading of each shelf	12 kg
Power supply	220V AC
Max. Power	1000W
Stable power	42W
Internal structure	Polished Steainless Steel
Optional Accessories
rH Sensor	1 pc
O2 Sensor	1 pc
Extra Shelves	4 pcs
Stacking Bracket	1 pc
Alarm and Reminder
Alarms	Ambient temp. rH%, Co2%, Water level, O2% (optional)
Reminder	HEPA Filter expiration, shotage of gas
Cleanliness
Sterilization	1) 180℃ dry heating 2) 0.2um filter 3) HEPA filter
