Bottle Top Dispenser

DispensMate

Feature
  • Excellent chemical resistance, components are made of PTFE, FEP, BSG, PP
  • Fully autoclavable at 121℃
  • Four ranges of bottle-top dispenser covering a volume range from 0.5mL to 50mL
  • Easy for cleaning and maintenance
  • The optional flexible discharge tube with safety handle permits fast and precise dispensing
  • Vapor pressure max. 500mbar, viscosity max. 500mm2/s,
  • temperature max. 40oC, density max. 2.2g/cm3

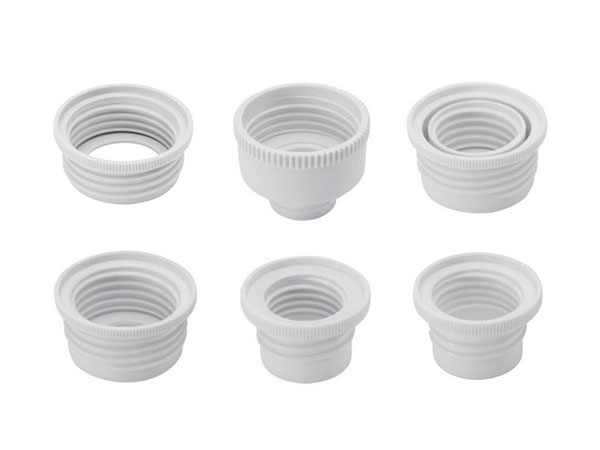

  • Dispensemate is supplied with S40, GL32, GL38,GL25, GL28
  • Specification
    Volume Range ml Graduation ml A≤± CV≤
    μl μl
    0.5-5 0.1 0.5 25 0.2 10
    1.0-10 0.2 0.5 50 0.2 20
    2.5-25 0.5 0.5 125 0.2 50
    5.0-50 1.0 0.5 250 0.2 100

    dFlow

    Feature
  • Motor operation minimizes the grip force
  • Electronic control decreases the repetitive strain injury
  • Remote control panel prevents manual disturbance during operation
  • Two Dispensing modes:
  • dispenser
  • stepper function
  • Specifications dFlow
    VolumeRange 0.1-99.9mL, Max piston lift is 10mL, resolution is  100μL
    Volume Accuracy Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL Stepper: R = 1mL ±6μL; CV = 1ML ±9μL
    Operating Temperature Range 10oC-30℃
    Quality Control DIN EN ISO 8655
    Contro Type External control
