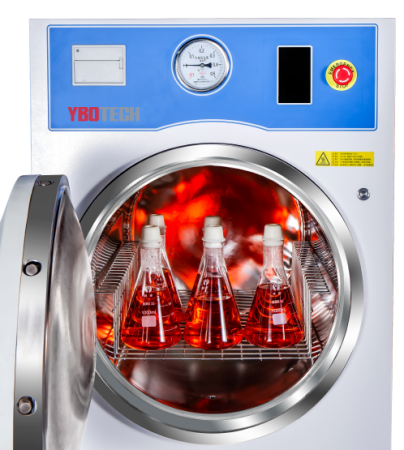

YBOTECH Class N Horizontal Autoclave (steam sterilizer) is suitable for unwrapped, wrapped, solid, hollow A, hollow B, lumen instruments and implanted instrument to be sterilized, widely used in life science, OR, clinic, lab, hospital and pharmacy.
Main Feature
- Microcomputer control system, touch screen displaying
- Automatic with pre-set programs
- Optional printer
- In built independent rapid steam generator
- Sterilization temperature range: 105℃～138℃
- Temperature uniformity:≤±0.5℃
- Chamber material: Stainless steel
- Accessory: Stainless steel sterilizing grille
Technical Specification
| Model | Capacity | Chamber dimensions(φxL) | Outer dimensions(LxWxH) | Net weight | Power supply | Frequency | Power (Kw) |
| HTA.N60L | 60L | 380 x 500mm | 985x600x1450mm | 105KG | 220V/380V | 50HZ | 5.7KW |
| HTA.N80L | 80L | 380 x 700mm | 985x600x1450mm | 120KG | 220V/380V | 50HZ | 5.7KW |
| HTA.N135L | 135L | 500 x 700mm | 1000x710x1550mm | 225KG | 220V/380V | 50HZ | 9.35KW |
| HTA.N185L | 185L | 500 x 950mm | 1250x710x1550mm | 255KG | 220V/380V | 50HZ | 10.8KW |
| HTA.N300L | 300L | 650 x 950mm | 1350x900x1750mm | 350KG | 220V/380V | 50HZ | 12KW |
| HTA.N450L | 450L | 650 x 1360mm | 1750x900x1750mm | 450KG | 220V/380V | 50HZ | 20KW |
