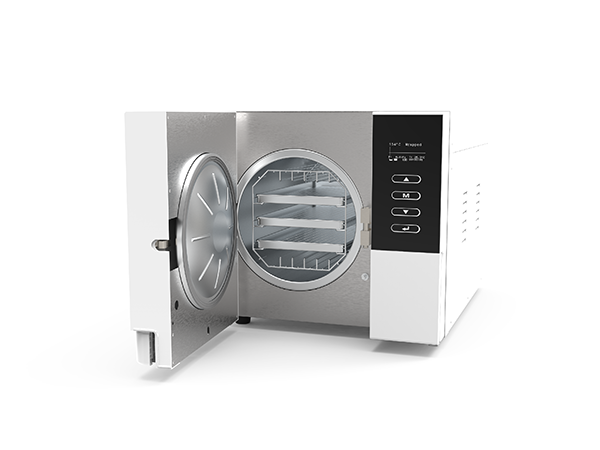

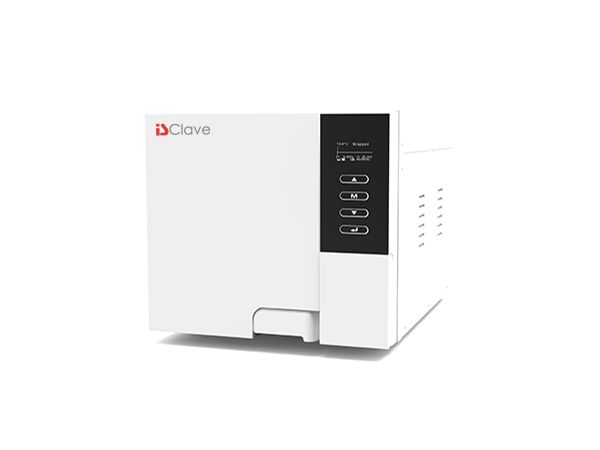

D7 Benchtop Autoclave

YBOTECH D7 Benchtop Autoclave (steam sterilizer) with Class B pre & post vacuum type, complies with the European standard EN13060. These autoclaves require minimal bench space making it an idea sterilization solution for small clinic such as dental, veterinary, beauty, podiatry and microbiology requirement.

gradeExcellent Performance
  • Full automatic table top autoclave with pre-set programs.
  • Complies with European standard EN13060.
  • Working very quietly.
  • In built independent rapid steam generator ensures quick sterilization cycles.
  • Rapid post sterilization vacuum drying.
  • With one flash water tank and used one water tank.
  • LCD screen displaying time, temperature and pressure, process alert and instrument conditions.
  • User friendly interface.
  • Self-initialization when work in different altitude.
  • Multi-language menu: Chinese, English, Spanish, German, Lithuanian, Polish, French, Czech, Hungarian, Romanian, Dutch, Latvian, Italian, Portuguese, Russian, Coratian.
gradeSafety and Monitoring
  • Double safety protection system prevents the cycle from starting if the door is not correctly locked. This system also prevents the door from opening if the pressure inside the chamber is not equal to atmospheric pressure outside the chamber.
  • Pressure safety valve prevents over pressure in the chamber and steam generator.
  • The power is automatically cut if a short circuit or electrical fault occurs.
  • Able to detect and identify the exact cause of any problem, and to issue a specific error code to the operator.
  • Water level main switch in the main tank controlling the min and max water level.
  • Automatic warning for maintenance.
  • Printer (option): an external printer is optional.
  • USB port: it is used for connecting a USB sticker, all sterilization data are automatically written in the USB stick, and can be ready directly in any PC and stored electronically.
  • Internal Memory: the last 20 cycles can be automatically stored in the autoclave system, which can be printed out at any time.

Technical Specification of D7 Tabletop Autoclave

Order Code D718 D723
Model Number STE-18-D STE-23-D
Chamber Dimension Ø240×350 mm Ø224×450 mm
Chamber Volume 18 L 23 L
Number of Trays 3/ Max. 5 3/ Max. 5
Material of Trays Aluminum Aluminum
Size of Trays. 192x285mm 192x380mm
Voltage Freq. 220/110V 220/110V
50/60Hz 50/60Hz
POWER.r 2000W 2000W
Overall Dimension (WxHxD) 490x455x690 mm 490x455x690 mm
Weight 47 kgs 53 kgs

Defult Program

Program Temp. (·C) Pressure (Kpa) Holding time (min.) Total Time(min)  D718/D723
SOLID 134 210 4 21-33 / 22-35
121 110 20 30-40 / 31-40
LIQUID 121 110 30 43-55 / 45-60
WRAPPED 134 210 4 25-45 / 30-50
121 110 20 31-50 / 36-55
TEXTILE 134 210 8 31-50 / 36-55
121 110 30 53-70 / 44-70
PRION 134 210 18 40-60 / 46-65
B&D TEST 134 210 3.5 13-25 / 16-30
HELIX TEST 134 210 3.5 13-25 / 16-30
VACUUM TEST 19-22 / 20-25
