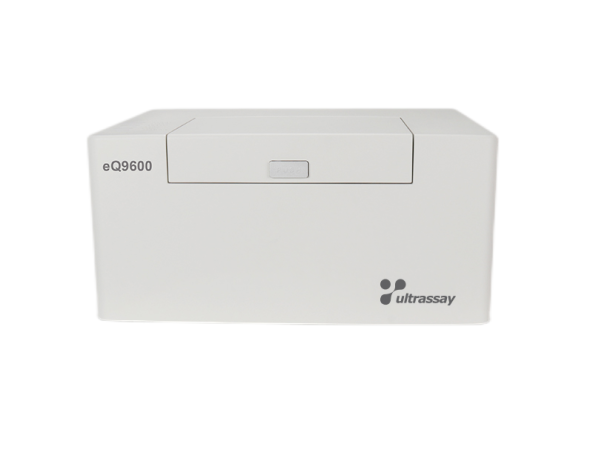

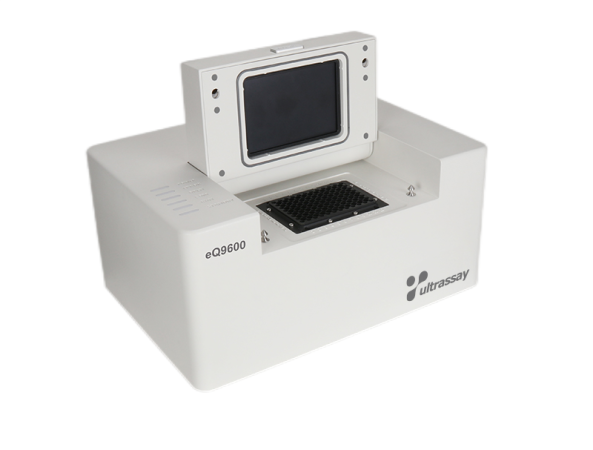

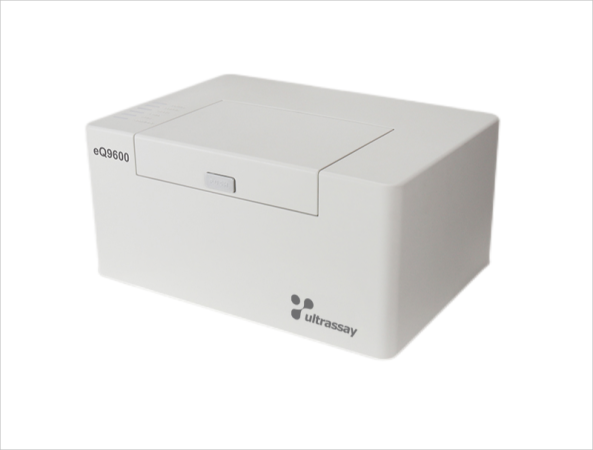

eQ9600 Real-time PCR System

Ybotech eQ9600 Real-time PCR System is a 96-well high-throughput real-time fluorescent quantitative PCR detection system released by ULTRASSAY following the eQ1600 series. This product adopts the DDSOM two-dimensional scanning photoelectric module technology and thermal system design, the unique technology of ULTRASSAY, achieving product characteristics of strong photoelectric signal, high sensitivity, low background noise and light weight. Coupled with powerful and friendly system software, it can be used for multiple gene detection, quantitative analysis, SNP analysis, melting curve analysis and other experiments.
This system is suitable for polymerase chain reaction and quantitative detection in immunology, human genome engineering, forensic medicine, oncology, tissue and population biology, paleontology, zoology, botany and other fields.

Feature
gradeHigh-throughput

96-well high-throughput 4/6-channel simultaneous detection

gradePortable

Simple and lightweight as A3 size

gradeStrong fluorescence signal, low background noise, high sensitivity
  • Independent excitation light for each channel, independent fluorescence detection, strong signal and low background noise. It is especially suitable for fluorescent quantitative PCR experiments with low-concentration DNA reagents such as direct amplification reagents, extraction-free reagents, and quick extraction reagents.
  • 1 scan to complete all channel detection.
  • Solid-state electronic optical data collection.
gradeSimple software interface, powerful system functions
  • The operating software adopts windows10 interface style and operating habits, which is easy to use for customers.
  • The system has parameter setting (with password authority), experimental parameter setting, sample information input, operation management, data export EXCEL, PCR program overview, real-time amplification curve display, channel crosstalk correction, criterion setting, automatic report, curve picture capture and other functions.
gradeLightweight temperature control module, rapid temperature change, good uniformity
  • Adopting the ULTRASSAY‘s proprietary thermal system design, which not only reduces the weight of the module, but also obtains excellent temperature uniformity, for effectively shortening the PCR experiment time.
  • Long-life semiconductor cooler (Peltier) is used for cooling.

eQ9600 Real-time PCR System

Technical Specification

Sample volume 96*0.2ml single tube or 8-strip transparent tube (except for white opaque tube), you can mark the tube with markers on the cover of the tube.
Applicable reagents This system is an open platform, suitable for various real-time PCR reagents, including fast extraction reagents, non-extraction reagents, or direct amplification reagents and other low-concentration PCR reagent.
Reaction volume 5-100ul
Dynamic range 1-1010 Copies
Color wavelength 320 – 900nm
Optical sensor PDM
Dyes CH1: FAM, SYBR Green I;
CH2: HEX, JOE, VIC, TAMRA;
CH3: ROX, CALRED;
CH4: CY5, QUASAR
CH5: Optional
CH6: Optional
Sensitivity 1 Copy
Rn ≥0.998
CV ≤3%
Block setting range 10-99.9ºC
Temperature control mode Tube mode, Real temperature of simulated reagent
Refrigeration Peltier
Precision of temperature control ≤0.1ºC
Display resolution 0.1ºC
Temperature accuracy ≤±0.2ºC
Temperature uniformity ≤0.2ºC
Max. ramping rate ≥4ºC/s
Avg. ramping rate ≥2.5ºC/s (50ºC – 90ºC)
Hot lid 30ºC-105ºC
Operating system Windows 7/10
Communication Interface RS232/USB
Software functions Built-in two-steps, three-steps, LAMP, RPA methods’ PCR program templates, free extraction reagent PCR program template and other common ones.
It has functions of system setting (password permission), experimental parameter settings, sample information input, operation management, data export EXCEL, general view of PCR program, real-time amplification curve display, channel crosstalk correction, criterion setting, automatic report, curve capture, etc.
Analytical function Standard curve, relative quantitative curve and melting curve (HRM)
Operating ambient Ambient temperature: 10-30ºC, relative humidity: 20-85% RH,
Input power 100-240V 50-60Hz 800W
Dimension 428x305x202 (A3 paper size)
Net weight 12.5kg
