- Automatic Internal Calibration
- 5 Inch Touch Screen
- Max. Capacity: 6.2 g
- Accuracy: 0.001 mg (1μg)

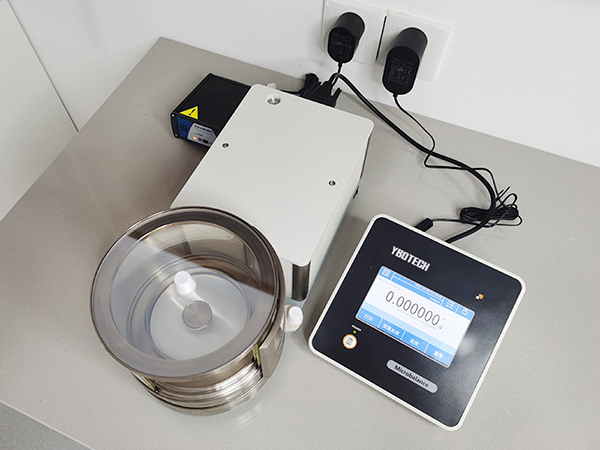

Mu-66i Series 0.001mg Micro Analytical Balance
Function
- Automatic Internal Calibration
- 5 Inch Touch Screen
- Automatic Internal Calibration
- Using Databases/Count Weighing/Check Weighing
- Percentage Weighing/Density/statistics Function
- Textile/Animal Weighing/Peak Hold
- Recipe Function/GLP Setting/User Setting
- Baud Rate is adjustable
- Languages:Italian/English/Portuguese/German/French/Spanish/Chinese
Technical specifications
- Working Temperature/Humidity
- Air Humidity,non-condensing
- Power:input 110-230Vac, 50/60Hz; output 24V 1A
- Voltage fluctuation:±10% Maximum working height: 4000m
- class of pollution :II
- Installation Type:II
Product specifications
| Micro Analytical Balance | |
| Capacity [Max] | 6.2 g |
| Readability [d] | 0.001 mg（1μg） |
| Tare range | -6.2 g |
| Linearity deviation | |
| Typical | ± 4 μg |
| Permissible | ± 5 μg |
| Repeat ability (standard deviation) | |
| Typical (@ 10% MAX) | 1 μg |
| Typical (@ MAX) | 2 μg |
| Permissible (@ 10% MAX) | 1.2 μg |
| Permissible (@ MAX) | 2.4 μg |
| Minimum Weight (USP), TYPICAL | 2 mg |
| Eccentric Load Deviation (Test Weight 2g) | |
| Typical | 5 μg |

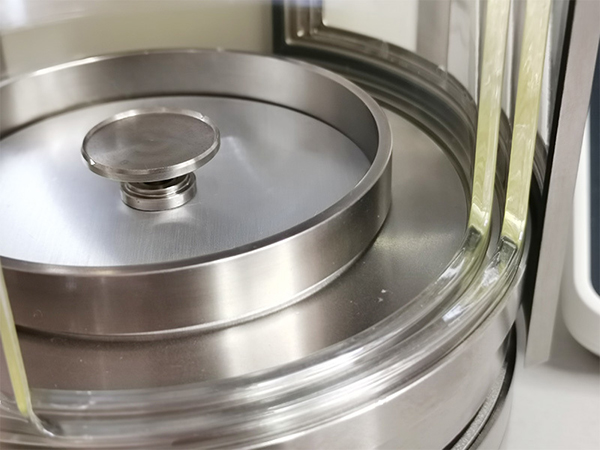

| Weighing chamber | |
| Opening | manual |
| External Dimensions | 160mm |
| Internal Dimensions | 130mm |
| Weighing Pan Dimensions | 30mm |
| Calibration Method | Internal automatic |
| Stabilization time | ≤ 10 sec |
| Display | 5’’ color touch screen |
| Interfaces | RS232, USB |
| Sensitivity drift between +10 °C and +30 °C | 1 ppm / °C |
| Operating temperature | +10°C ¸ +40°C |
| Operating temperature change rate | ± 0,4°C/1h (±1,3°C/8h) |
| Relative humidity | 40% ¸ 80% |
| Relative humidity change rate | ± 1%/h (±5%/8h) |
Product Application
Gemstone
Experiment
Plastic particles
Medicinal
