Mini Vortex Mixer

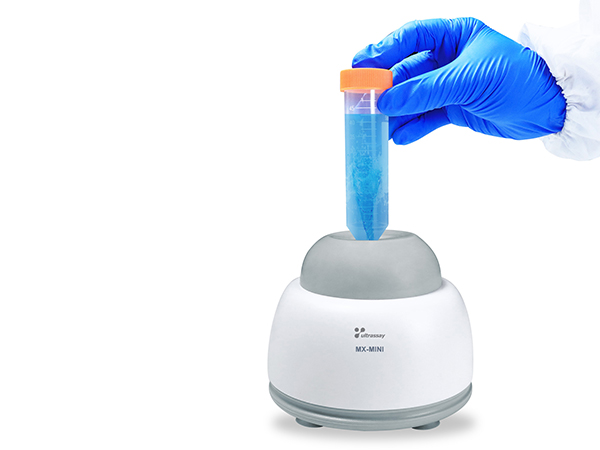

Ybotech Mini vortex mixer is an ideal vortex mixer with its tiny size and easy-to-use, and it is designed for oscillating and blending of various reagents, solutions, chemicals and other samples. Simply push the tube into the soft attachment to start shaking. It is used for mixing samples in small containers (maximum 50mL centrifuge tube) and has the function of inching.

Feature

Key Features

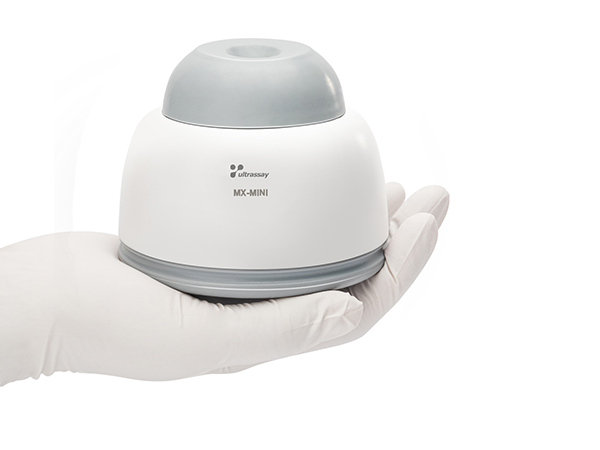

  • Compact, portable and fits nicely on bench-top erase desktops and table tops.
  • Touch operation, fixed speed of 3000rpm for rapid mixing of samples.
  • Powerful and efficient 12V DC brushless motor is smooth operation and has long life.
  • Foot pad design secures the mixer in place and does not wobble during operation.

Application

Mini vortex mixer is widely used for oscillating and blending of various reagents, solutions, chemicals and other samples.

Mini Vortex Mixer

Technical Specification

Mixing motion Orbital

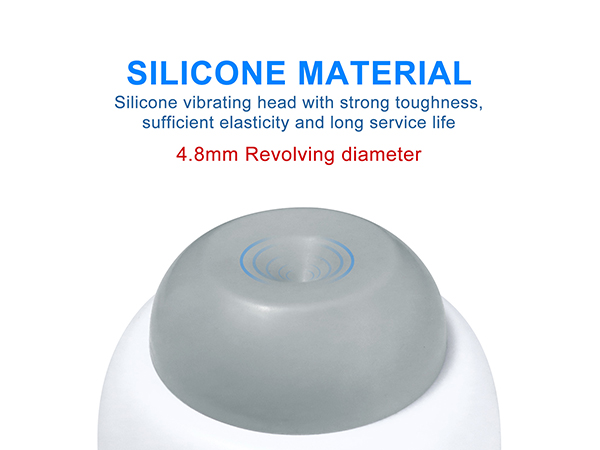

Revolving diameter 4.8mm
Rotational speed 3000rpm (fixed)
Motor type Brushless DC motor
Operating mode Inching
Power supply 100 – 240V
Frequency 50/60HZ
Power 12 W
Motor rating output 10 W
Dimension 100x100x79mm
Weight 0.5kg
Permissible ambient temperature and humidity 5 -40, 80%RH
Protection class IP21
