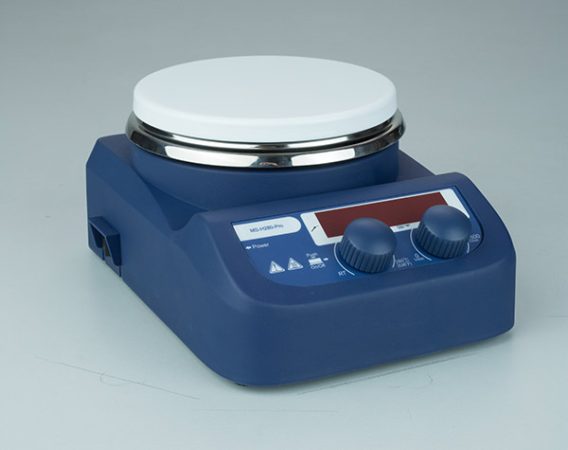

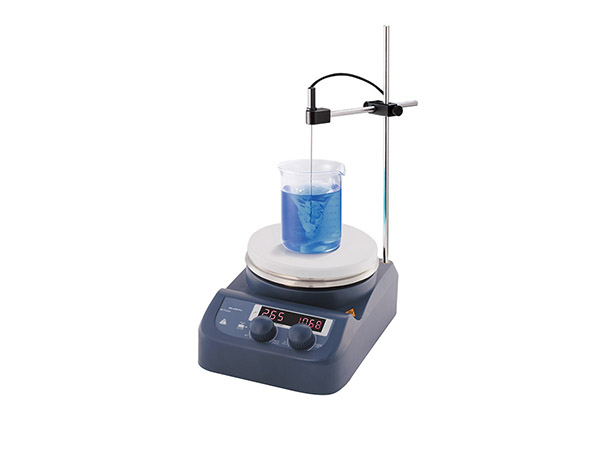

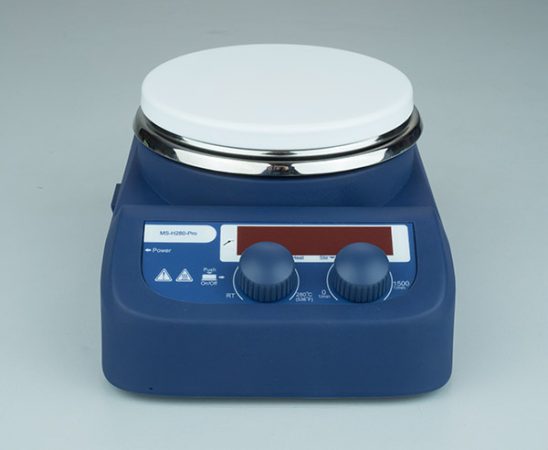

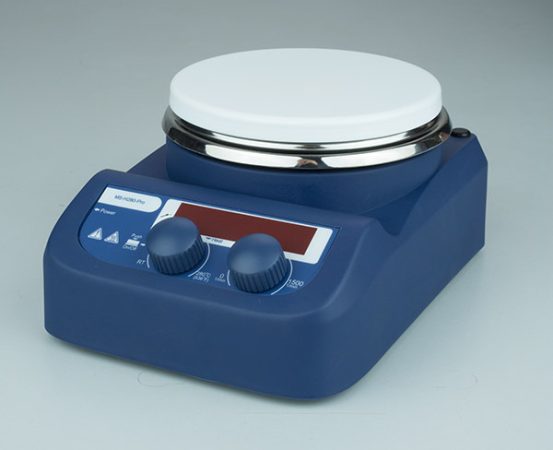

MS-H280-Pro

YBOTECH MS-H280-Pro magnetic stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.

Feature
  • Digital temperature control with maximum temperature up to 280°C
  • Digital speed control with maximum speed up to 1500rpm
  • Stainless steel with ceramic coating work plate provides high chemical resistant performance
  • External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2°C
  • LED display shows temperature and stirring speed
  • “HOT” warning flashes if work plate temperature is above 50°C

Specification of MS-H280-Pro

Specifications MS-H280-Pro
Work plate Dimension φ135mm(5 inch)
Work plate material stainless steel cover with ceramic
Motor type Brushless DC motor
Motor rating input 5W
Motor rating output 3W
Power 515W
Heating output 500W
Voltage 100-120/200-240V  50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 3L
Max. magnetic bar[length] 50mm
Speed range 200-1500rpm
Speed display LED
Temperature display LED
Speed display resolution ±1rpm
Heating temperature range Room temp.-280, increment 1°C
Control accuracy of work plate ±1°C(<100°C)     ±1%(>100°C)
Over  heat Protection 320°C
Temperature  display accuracy ±1°C
External  temperature sensor PT1000 (accuracy ±0.5°C)
“Hot” warning 50°C
Protection class IP21
Dimension [W x D x H] 150×260×80mm
Weight 1.8kg
Permissible ambient temperature and humidity 5-40℃ 80%RH
