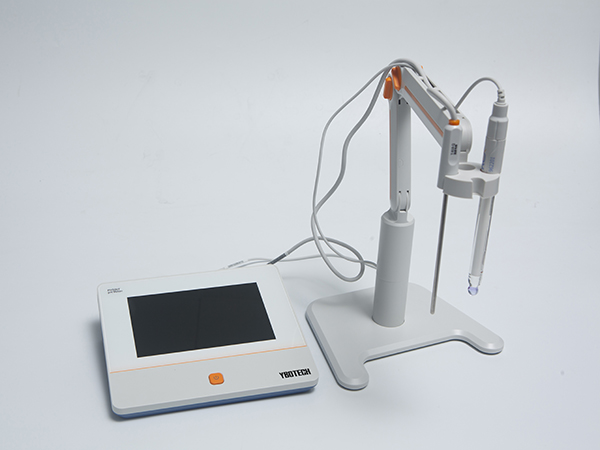

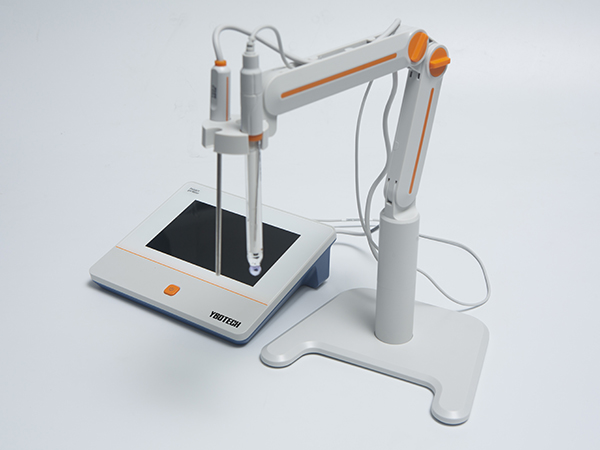

PH500T pH Meter

PH500T pH Meter

GENERAL FEATURES

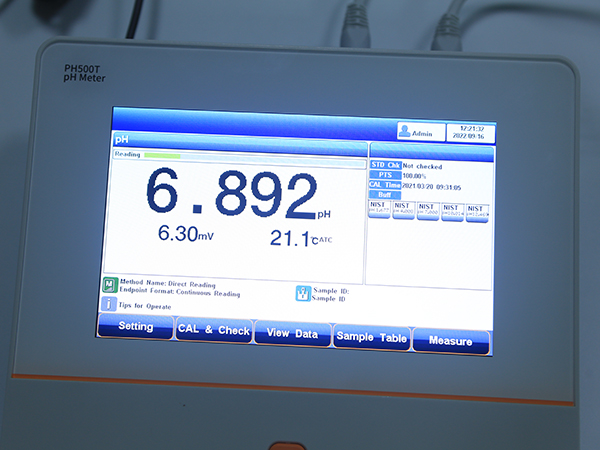

Color High contrast LCD touchscreen, 7.0 inches.
Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
Multi-reading feature allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Data Storage 1000 sets for each parameter (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Support for USB or RS-232 communication.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1-6 points calibration with Standard Recognition.
Selectable pH buffer groups, including DIN, NIST, USA, MERK, JIS, GB.
Support for pH standard group customization.
Automatic electrode diagnosis with pH slope and offset display.

Model		PH500T
Parameters		pH/Temp.(mV/ORP)
pH	Range	-2.00 to 20.00pH
	Resolution	0.1, 0.01, 0.001pH
	Accuracy	±0.002 pH
	Calibration Points	Up to 6
	Standard Customization	Yes
	Calibration Reminder	YES
	Auto Standard Recognition	NIST, GB, DIN, USA, MERK, JIS buffers
mV/ORP	Range	-2000 to 2000 mV
	Resolution	0.1, 0.01 mV
	Accuracy	± 0.1 mV or ± 0.03%
	EH ORP Mode	YES
	ORP Calibration Points	1 custom point (relative mV)
Temperature	Range	-10 to 135 ºC, 14 to 275 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Accuracy	±0.1
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	1000 Groups
	GLP Features	YES
	Log Management	YES

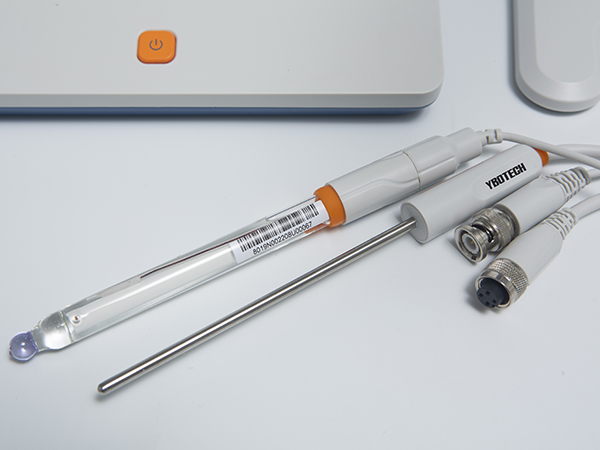

Inputs	pH Electrode	BNC(Q9)
Inputs	Temp. Probe	4-pin aviation connector
Outputs	RS 232	printer, scanner, auto-sampler
Outputs	USB	USB 2.0 flash memory device, PC
Display options	Backlight	Yes
	Auto Shutdown	1~60 min, of
	IP Rating	IP54
	Date and Time	YES
General	Power	AC Adapter, 100-240V AC input, DC9V output
	Dimensions	220 × 195 × 68 mm
	Weight	950g (2.09 lb)
