ETC811 Thermal Cycler

PCR, Polymerase Chain Reaction, is a method for enzymatic synthesis of specific DNA fragments in vitro. It consists of high temperature denaturation, low temperature annealing (renaturation) and suitable temperature extension. The cycle is carried out, and the target DNA can be rapidly amplified. It has the characteristics of high specificity, high sensitivity, simple operation and time saving. Thermal cycler is the device for rapid amplification of genes. Based on Peltier technology, it realizes the rapid, accurate and automatic circulation of reagent temperature, thus realizing the full automation of the PCR process. It can be used not only in basic research such as gene isolation, cloning and nucleic acid sequencing, but also in clinical diagnosis of diseases.

gradeInhibit Nonspecific Amplification

The experienced soft design inhibits the nonspecific amplification of reagents. In practice, if the PCR reagent is put into the block immediately before the hot lid temperature reaches the set value, the reagent in the block will also heating-up with hot lid. Here, the reagent in block will begin to react slowly. But this is not the desired, that is, nonspecific amplification. What to do? during the hot lid warming up, the block is cooled to 10℃ until the hot lid temperature get set value before running the cycle program.

gradeInhibit Nonspecific AmplificationAdjustable Ramp Rate

Actually, not all PCR experiments require the fastest ramp rate. Some PCR reactions require fixed heating rate or cooling rate to ensure the result of PCR reaction. After long-term technical accumulation and algorithm optimization, ETC811 provides a nearly perfect linear temperature control curve.

gradeInhibit Nonspecific Amplification Prevent Evaporation

In order to speed up the temperature balance between block and reagent and shorten the reaction time of PCR, the control mode of overheating block temperature is often used in the temperature control algorithm of PCR. However, for small-volume reaction of PCR, excessive overheating will make reagent temperature close to boiling point, which will cause reagent evaporation or even drying, leading to the abandonment of previous work. With the accumulation of temperature control technology for many years, the reagent of ETC811 PCR will not evaporate even in a small volume of 5-15ul, so as to ensure the success of the experiment.

gradeInhibit Nonspecific AmplificationTemperature Synchronization

When gradient function is used to optimize the PCR reaction conditions, there are two variables, time and temperature. When the temperature gradient is set, we tend to focus only on the effect of temperature on the PCR reaction. In fact, the time of arrival of temperature is different for each column well. This raises the question: is the result of optimization a function of temperature or time? ETC811 uses a special temperature control algorithm to solve this problem well. By eliminating the time variable, the gradient PCR optimization experiment is only related to temperature, which greatly improves the certainty of the test results.

gradeInhibit Nonspecific AmplificationEasy to Pressurize and Lock.

● Press and lock simultaneously
● Damped cover shaft can be stopped whenever you want
● Adaptable to different tubes (except full skirt)

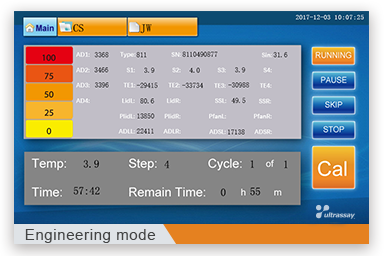

gradeInhibit Nonspecific AmplificationBuilt in Engineering Mode

● Press and lock simultaneously
● Damped cover shaft can be stopped whenever you want
● Adaptable to different tubes (except full skirt)

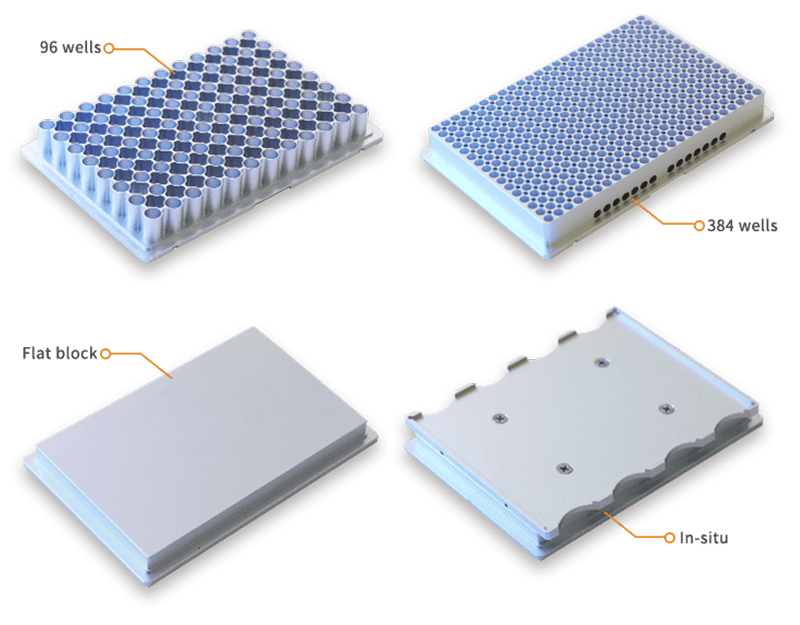

gradeOptional module model

Basic Parameters of ETC811

1 Model ETC811 ETC811-384 ETC811-***
2 Block 0.2ml*96 Aluminum 384 Aluminum In-situ or flat
3 Applicable Consumables 96 Microplate (non-skirt/semi-skirt, except full skirt)Single/8-strip/12-strip tubes (tall/short/flat/dome tubes) 384 Microplate Customizable
4 Input Power 100-240V~50/60Hz, 600VA
5 Dimension (L*W*H) Product size: 427*288*227 mm      Carton size: 540*450*385mm
6 Weight Net Weight: 9.7kg        Gross weight: 14.5kg

Block Performance Parameter of ETC811

7 Temperature control accuracy ≦ ±0.1°C
8 Block temperature precision ≦ ±0.1°C
9 Block temperature uniformity ≦ ±0.3°C @ 55°C
10 Max. ramp rate ≥ 5°C/s
11 Avg. ramp rate ≥ 2°C/s
12 Temperature Control Technology 3 Peltier independently control. Distributed auxiliary heating on block edge.

Features of ETC811

13 Block control mode Block/Tube
14 Block temperature range 4-99°C
15 Hot lid temperature range 30-110°C, ON/OFF
16 Real-time curve Display block and hot lid temperature curve
17 Gradient range 30-99°C / 0.1-42°C
18 Temperature touch down 0.1-9.9°C/cycle
19 Time touch down 1-9m59s/cycle
20 Smart ramp rate control technology Gradient temperature reaches the target simultaneously.
21 Ramp rate control Yes, 0.1-4°C/s adjustable
22 Inhibit non-specific amplification Yes
23 Display screen 7″ WVGA 64000 color touch screen with led backlight
24 Max PCR step 30
25 Memory Max 1296 files
26 Password protection Yes
27 Memory function of Power-off Yes
28 Self-adaptable lid Hot lid can automatically adapt to various heights of tubes (tall /short/flat/dome tubes).
29 Self-test Yes. Self-test every time when power on.
30 Auto report Yes. Auto report every action in process after running.

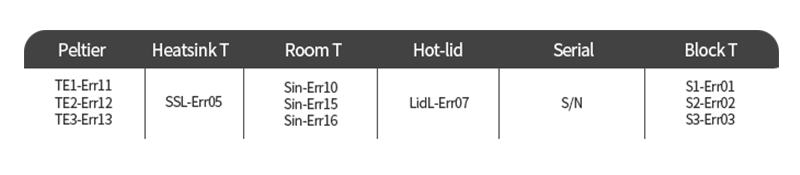

31 Fault self-diagnosis and report Yes. Fault self-diagnosis and display error code in pop-up window
32 Auto soaking after running Yes. Reagents are auto cooled and keep to 8°Cafter running
33 Estimation of remaining time Yes
34 Edit other programs in operation Yes
35 Service support Yes. Provide technical support and service online
