Capacity: 110g/210g
Readability: 0.001g/0.002g/0.005g/0.01g
Feature

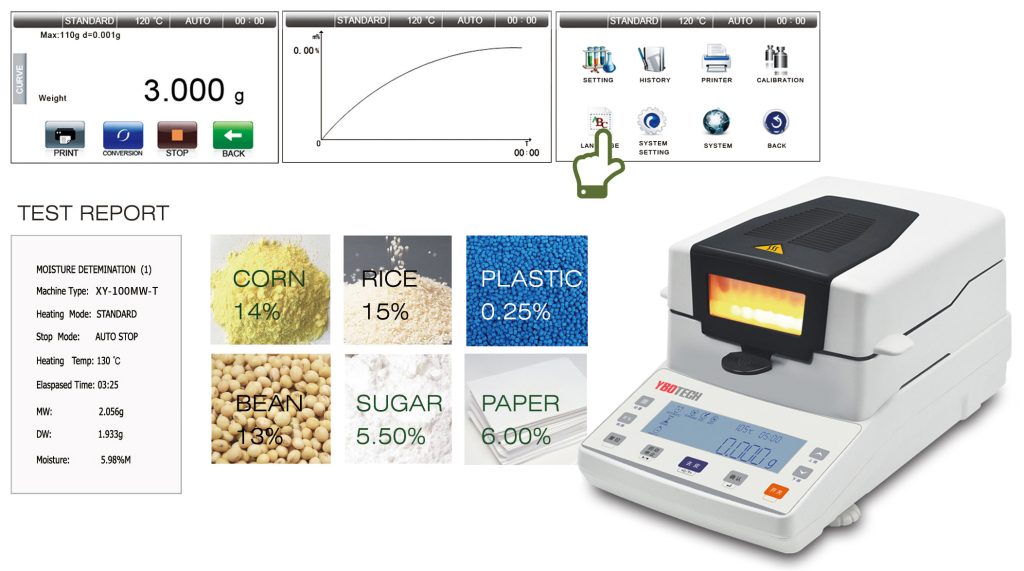

Ybotech Moisture Analyzer is widely used in industrial, agriculture, laboratory applications. Some typical applications are: tobacco, paper, food, tea, corn, chemical, row materials and textile material etc.
- Halogen lamp/HBM sensor
- Aluminum shell/Stainless steel chamber
- LCD (White back light with black font)
- Temperature/Time set
- The percentage of moisture content/dry residual
- Store historical set
- Option:Aluminum box/Printer/Grinder
Specifications
|
YB-MW Moisture Analyzer |
||||
| Model | YB-110MWYB | YB-105MW | YB-102MW | YB-100MW |
| Capacity | 110g | |||
| Readability | 0.01g | 0.005g | 0.002g | 0.001g |
| Operating Temp | 5℃-35℃ | |||
| Display | LCD(White back light with black font) | |||
| Calibration | External Calibration | |||
| Interface | RS232/RJ45/USB… | |||
| Pan Size | Ø90mm | |||
| Packing Size | 490x350x360mm | |||
| Gross Weight | 7.5kg | |||
| Heating Source | Halogen Lamp-1 | |||
| Temp.Sensor | PT100 | |||
| Temp.Range | 40℃-199℃ | |||
| Temp.Step | 1℃ | |||
| Moisture Range | 0.00%-100.00% | |||
| Moisture Readability | 0.2% | 0.10% | 0.04% | |
| Dry Range | 100.00%-0.00% | |||
| Dry Readability | 0.2% | 0.10% | 0.04% | |
| Temp Setting | 40℃-199℃ By 1℃ Step | |||
| Time Setting | 1-99min By 10s | |||
| Number Of Storage | 15 | |||
| Heater | 220V ±15% 50HZ/110V±15% 60HZ/400W | |||
| Balance | Input:220V 50HZ/110V 60HZ Output:9V | |||
