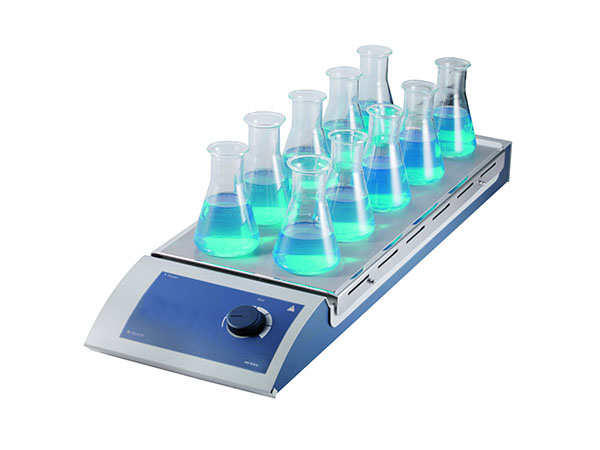

10 Positions Magnetic Stirrer

YBOTECH 10 Positions Magnetic Stirrer is a laboratory device that employs a rotating magnetic field to cause a stir bar immersed in a liquid to spin very quickly, thus stirring it. The rotating field may be created either by a rotating magnet or a set of stationary electromagnets, placed beneath the vessel with the liquid. It is used in chemistry and biology where other forms of stirring, such as motorized stirrers and stirring rods, may not be viable for use.

Feature
  • Efficient, simple and safe stirring
  • High performance and space-saving design to maximize the use of benchtop space and saving time by stirring multiple solutions
  • Maintenance-free brushless DC motor
  • Speed range 0-1100rpm
  • Stainless steel work plate covered with silicone cushion, provides excellent performance
  • 10-Position Magnetic Stirrer of skid resistance
Specification MS-M-S10
Work plate Dimension [W x D] 180x450mm
Work plate material Stainless steel with silicone coating
Motor type Brushless DC motor
Stirring positions 10
Max. stirring quantity, [H2O] 0.4Lx10
Max. magnetic bar[length] 40mm
Speed range 0-1100rpm resolution±1rpm
Speed,time, Temperature display Scale
Protection class IP20
Power 20W
Voltage Frequency 100-120/200-240V 50/60Hz
Dimension [WxDxH] 622x205x65mm
Weight 3.2KG
Permissible ambient temperature and humidity 5-40℃,80%RH
