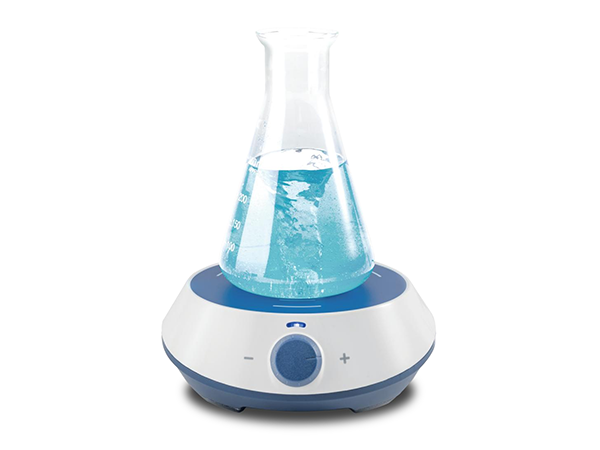

YBOTECH EcoStir magnetic stirrer with electrode holder has a reliable design and a powerful stirring ability. It is a basic and ideal tool for electrochemistry measurements or water & environment monitoring; drug or food analysis; liquid culture mixing, etc.
Feature
- Compact design with small footprint, 12V voltage available for mobile labs.
- Square work plate supports 1.5L stirring capacity.
- Holder with clamp for pH electrode or othersensor.
- Default PET top provides excellent chemical resistance.
- Extra colorful stickers satisfy DIY design by yourself.
- Maintenance free brushless DC moto.
- An economical choice of a reliable & durable magnetic stirrer with an electrode holder for Square Plate Magnetic Stirrer stable & powerful stirring ability.
Specifications | EcoStir (Round) | EcoStir (Square) |
Work plate Dimension | φ120mm | 120×115mm |
Work plate material | PET | |
Motor type | Brushless DC motor | |
Motor output power | 1.2W | |
Power | 7.2W | |
Voltage | 100-120/200-240V,50/60Hz | |
Stirring positions | 1 | |
Max. stirring quantity[H2O] | 1.5L | |
Max. magnetic bar[length] | 40mm | |
Speed range | 300-2000rpm | |
Speed setting | scale | |
Protection class | IP21 | |
Dimension [W x D x H] | 150x145x50mm | 150x144x54mm |
Weight | 0.3kg | |
Permissible ambient temperature and humidity | 5-40°C,80%RH |
