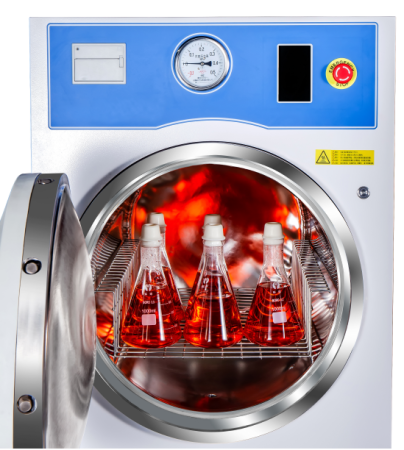

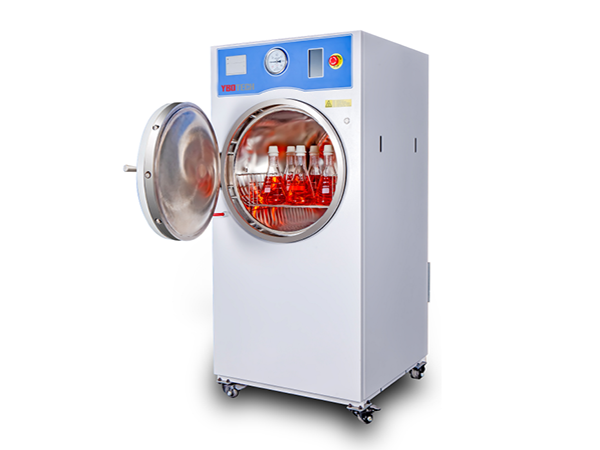

YBOTECH Class B Horizontal Autoclave (steam sterilizer) is suitable for unwrapped,wrapped, solid,hollow A,hollow B,lumen instruments and implanted instrument to be sterilized, widely used in life science, OR, clinic, lab, hospital and pharmacy.
Main Feature
- Microcomputer control system, touch screen displaying
- Internal printer
- Automatic with pre-set programs
- Built-in independent rapid steam generator
- Built-in vacuum pump and vacuum drying system
- Sterilization temperature range: 105℃～138℃
- Limit vacuum: -0.096Mpa
- Temperature uniformity:≤±0.5℃
- Chamber material: Stainless steel
- Accessory: Stainless steel sterilizing grille
Technical Specification
| Model | Capacity | Chamber dimensions(φxL) | Outer dimensions(LxWxH) | Net weight | Power supply | Frequency | Power (Kw) |
| HTA.B60L | 60L | 380 x 500mm | 985x600x1450mm | 105KG | 220V/380V | 50HZ | 5.7KW |
| HTA.B80L | 80L | 380 x 700mm | 985x600x1450mm | 120KG | 220V/380V | 50HZ | 5.7KW |
| HTA.B135L | 135L | 500 x 700mm | 1000x710x1550mm | 225KG | 220V/380V | 50HZ | 9.35KW |
| HTA.B185L | 185L | 500 x 950mm | 1250x710x1550mm | 255KG | 220V/380V | 50HZ | 10.8KW |
| HTA.B300L | 300L | 650 x 950mm | 1350x900x1750mm | 350KG | 220V/380V | 50HZ | 12KW |
| HTA.B450L | 450L | 650 x 1360mm | 1750x900x1750mm | 450KG | 220V/380V | 50HZ | 20KW |
