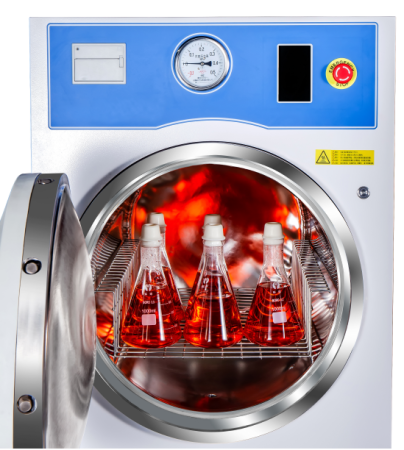

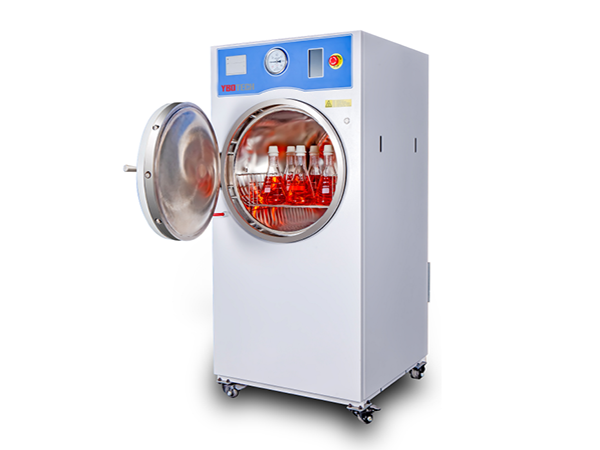

HTA.B Series Class B Horizontal Autoclave

YBOTECH Class B Horizontal Autoclave (steam sterilizer) is suitable for unwrapped,wrapped, solid,hollow A,hollow B,lumen instruments and implanted instrument to be sterilized, widely used in life science, OR, clinic, lab, hospital and pharmacy.

gradeHTA.B Series Class B Horizontal Autoclave

Mian Feature

  • Microcomputer control system, touch screen displaying
  • Internal printer
  • Automatic with pre-set programs
  • Built-in independent rapid steam generator
  • Built-in vacuum pump and vacuum drying system
  • Sterilization temperature range: 105℃~138℃
  • Limit vacuum: -0.096Mpa
  • Temperature uniformity:≤±0.5℃
  • Chamber material: Stainless steel
  • Accessory: Stainless steel sterilizing grille

MSG.BSD Horizontal Autoclave

Technical Specification

Model Capacity Chamber dimensions(φxL) Outer dimensions(LxWxH) Net weight Power supply  Frequency  Power (Kw)
HTA.B60L 60L 380 x 500mm 985x600x1450mm 105KG 220V/380V 50HZ 5.7KW
HTA.B80L 80L 380 x 700mm 985x600x1450mm 120KG 220V/380V 50HZ 5.7KW
HTA.B135L 135L 500 x 700mm 1000x710x1550mm 225KG 220V/380V 50HZ 9.35KW
HTA.B185L 185L 500 x 950mm 1250x710x1550mm 255KG 220V/380V 50HZ 10.8KW
HTA.B300L 300L 650 x 950mm 1350x900x1750mm 350KG 220V/380V 50HZ 12KW
HTA.B450L 450L 650 x 1360mm 1750x900x1750mm 450KG 220V/380V 50HZ 20KW
