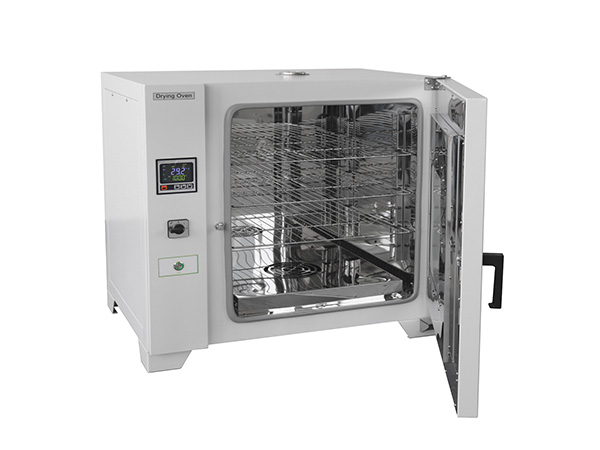

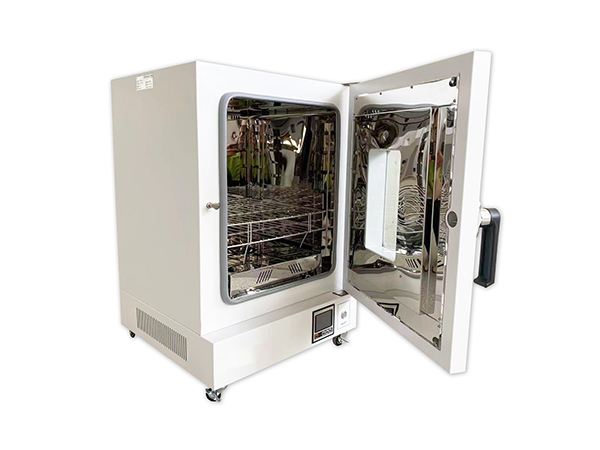

Constant Temperature Drying oven

Ybotech Constant Temperature drying oven is an earlier drying device, and the inside of the oven is divided into several layers by heating plates. Hot water or low-pressure steam is passed into the heating plate as the heating medium, the material pan with the medicine to be dried is placed on the heating plate, the door of the box is closed, and the inside of the box is vacuumed with a vacuum pump. The heating plate heats the medicine to the specified temperature in the circulating flow of the heating medium, and the water starts to evaporate and is gradually drawn away with the vacuum. This equipment is easy to control, can condense and recover the evaporated solvent, and the medicine is not easy to be contaminated during the drying process. It can be used for medicine drying, packaging material sterilization, and heat treatment.

Feature
  • High quality stainless steel chamber,safe and easy-to-clean.
  • Microprocessor controller with LCD display, accurate and reliable.
  • Equipped with multiple sets of heaters.
  • Equipped with leakage protection.
  • Equipped with spare temperature control which ensures the product work normally even the main temp.control failed.
  • Adopt temperature selection switch which can select the grade according to the heating speed and operating

Technical Parameters

  1. Temp. range: RT+10℃ -300℃
  2. Temp. flucturation: ±1℃ .
  3. Temp. resolution: 0.1℃
  4. Temp. uniformity:≦Max. Temp.±3.5℃ %.
  5. Power supply: 220V, 50HZ

Options

  1. Multi-segment programmable control
  2. Built-in Printer
  3. RS485 interface

Technical Specification

Model

Volume

(L)

Chamber Size

(LxWxH)cm

Power Rating (W) Shelf Net/Gross Weight (kg)
LDO-300 43 35X35X35 1300 2 35/55
LDO-400 81 45X40X45 2000 2 50/80
LDO-500 138 50X50X55 2500 2 75/110
LDO=600 252 60X60X70 3500 2 110/150
