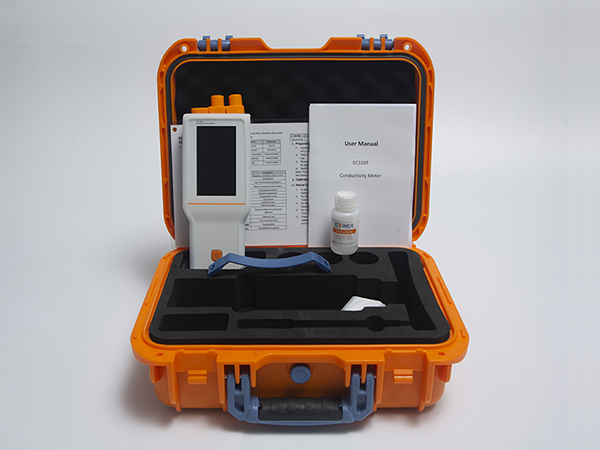

- DJS-1VTC EC electrode
- 1413μS/cm EC standard solution, 50ml, 1 vial
- Electrode holder
- Silicone rubber case
- Wristbands
- Touch pen
- Carrying Case

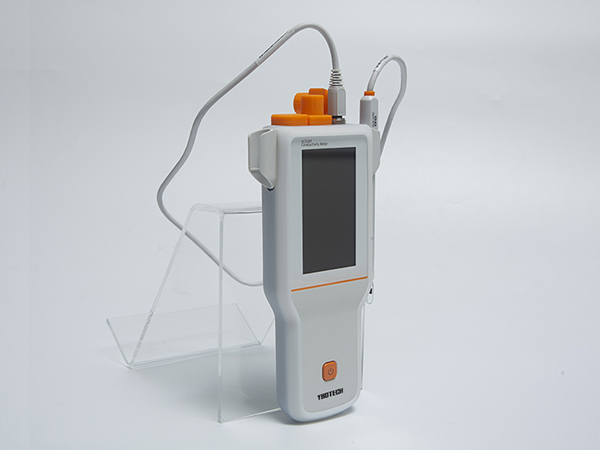

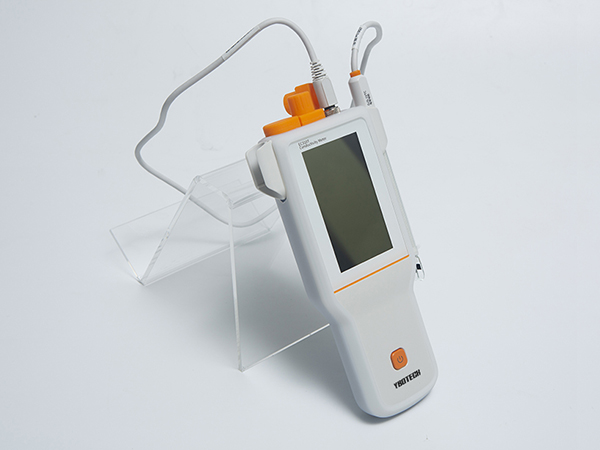

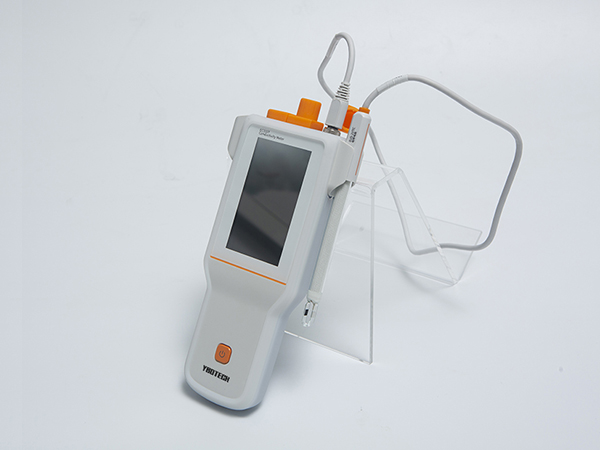

EC310T Conductivity Meter
EC310T Conductivity Meter
GENERAL FEATURES
- Color High contrast LCD touchscreen, 4.3 inches.
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data capacity of up to 500 sets for each parameter (GLP-compliant).
- Support for USB communication.
- Auto-power off feature effectively extends the battery service life.
- Reset feature automatically resumes all settings back to factory default options.
- IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
- 1-3 points calibration with Standard Recognition.
- Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
- Temperature compensation type (none, linear, pure water).
Product specifications
| Model | EC310T | |
| Parameters | EC/Temp.(Resistivity/TDS/Sal.) | |
| Conductivity | Range | 0.000 μ S/cm to 1000 mS/cm |
| Resolution | 0.001 μ S/cm minimum, various with range selection |
|
| Accuracy | ± 1.0% FS | |
| Reference Temperature | 20, 25 ºC | |
| Calibration Points | Up to 3 | |
| Standard Recognition | 84 μ S/cm, 1413 μ S/cm, 12.88mS/cm | |
| Resistivity | Range | 5.00 Ω ·cm~20.00 M Ω ·cm |
| Resolution | 0.01 Ω ·cm minimum, | |
| Accuracy | ± 1.0% FS | |
| TDS | Range | 0.00mg/L~300g/L |
| Resolution | 0.01mg/L(0.001mg/L) minimum, 3 significant digits | |
| Accuracy | ± 1.0%FS | |
| Salinity | Range | (0.00~8.00)% |
| Resolution | 0.01% | |
| Accuracy | ± 0.2% | |
| Temperature | Range | -5 to 110 ºC, 23 to 230 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Relative Accuracy | ± 0.2 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes | |

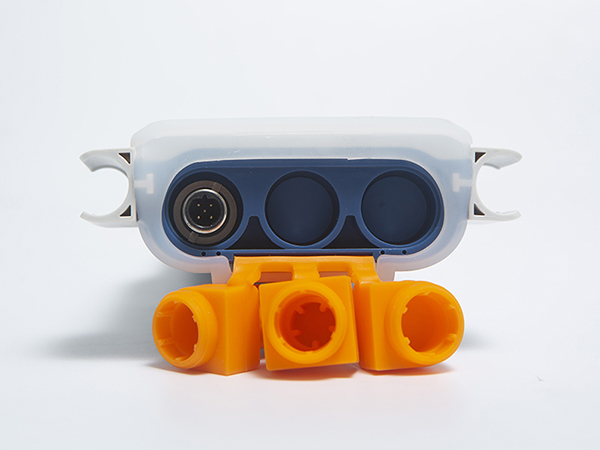

| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Outputs | USB | PC, printer |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600sec., off | |
| IP Rating | IP65 | |
| Date and Time | Yes | |
| General | Power | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 90 x 255 x 40 mm | |
| Weight | 500g (1. 1 lb) | |
