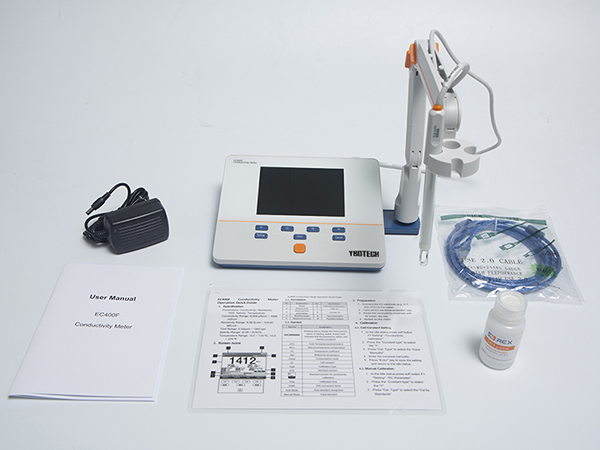

- DJS-1VTC EC electrode
- 1413μS/cm EC standard solution, 50ml, 1 vial
- Electrode holder

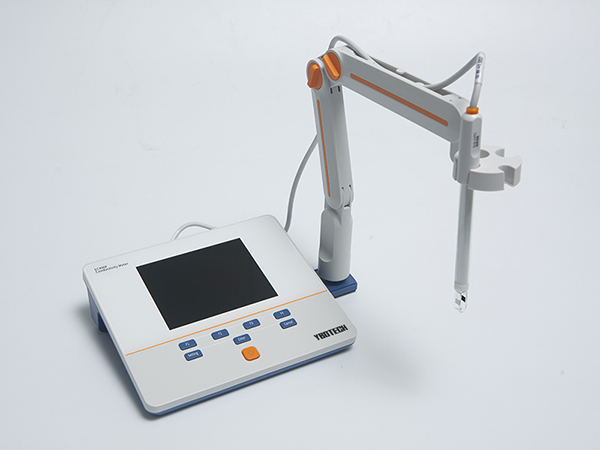

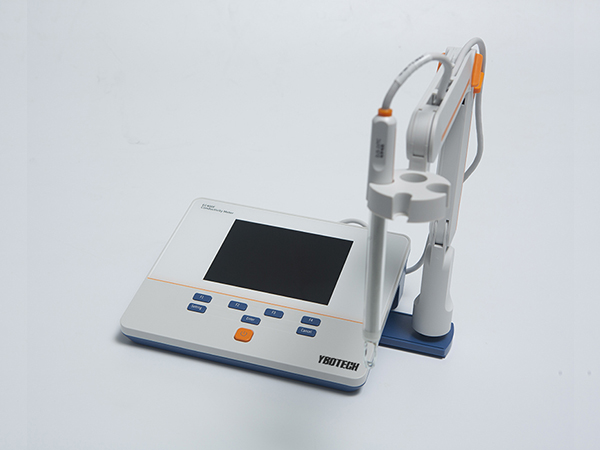

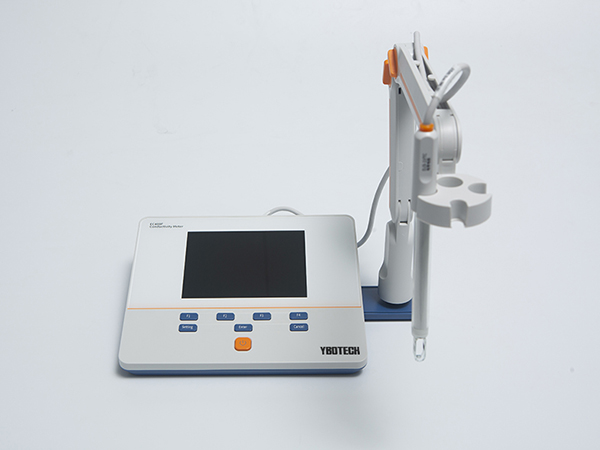

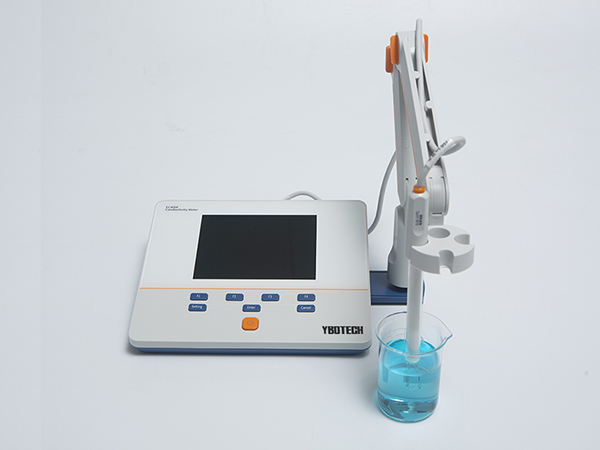

EC400F Conductivity Meter
EC400F Conductivity Meter
GENERAL FEATURES

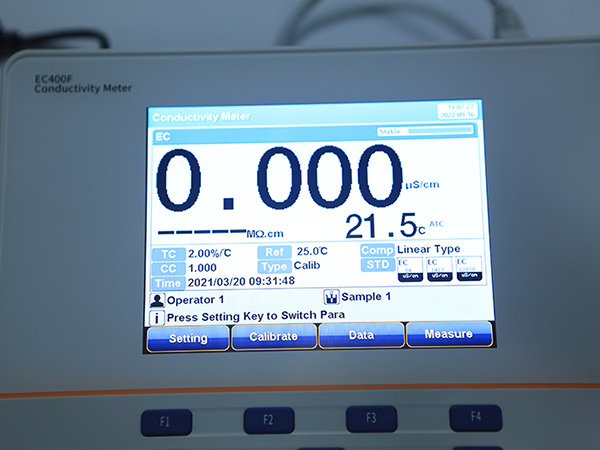

- High resolution LCD display, 5.7 inches.
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data Storage 500 sets (GLP-compliant).
- Support for USB or RS-232 communication.
- Reset feature automatically resumes all settings back to factory default options.
- IP54 waterproof.
- 1-3 points calibration with Standard Recognition.
- Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
- Temperature compensation type (none, linear, pure water).
Product specifications
|
Model
|
EC400F
|
|
|
Parameters
|
EC/Temp. (Resistivity/TDS/Sal.)
|
|
|
Conductivity
|
Range
|
0.000 μS/cm to 1000 mS/cm
|
|
Resolution
|
0.001 μS/cm minimum,
various with range selection |
|
|
Accuracy
|
±0.5% FS
|
|
|
Reference Temperature
|
20, 25 ºC
|
|
|
Calibration Points
|
Up to 3
|
|
|
Standard Recognition
|
84μS/cm, 1413μS/cm, 12.88mS/cm
|
|
|
Resistivity
|
Range
|
5.00 Ω·cm~100.00 MΩ·cm
|
|
Resolution
|
0.01 Ω·cm minimum
|
|
|
Accuracy
|
±0.5% FS
|
|
|
TDS
|
Range
|
0.00mg/L~1000g/L
|
|
Resolution
|
0.001mg/L minimum, various with range selection
|
|
|
Accuracy
|
±0.5% FS
|
|
|
Salinity
|
Range
|
(0.00~8.00)%
|
|
Resolution
|
0.01%
|
|
|
Accuracy
|
±0.1%
|
|
|
Temperature
|
Range
|
-10 to 135 ºC, 14 to 275 ºF
|
|
Unit
|
ºC, ºF
|
|
|
Resolution
|
0.1
|
|
|
Accuracy
|
±0.1
|
|
|
Measurement
|
Reading Mode
|
Auto Read (Fast, Medium, Slow), Timed, Continuous
|
|
Reading Prompts
|
Reading, Stable, Locked
|
|
|
Temp. Compensation
|
ATC, MTC
|
|
|
Data management
|
Data Storage
|
500 results each
|
|
GLP Features
|
Yes
|
|
|
Conductivity with Temp. Probe
|
5-pin aviation connector
|
|
|
Outputs
|
USB
|
USB 2.0 flash memory device, PC
|
|
RS 232
|
printer
|
|
|
Display options
|
Backlight
|
Yes
|
|
Auto Shutdown
|
1~60 min, off
|
|
|
IP Rating
|
IP54
|
|
|
Date and Time
|
Yes
|
|
|
General
|
Power
|
AC Adapter, 100-240V AC input, DC9V output
|
|
Dimensions
|
242×195×68 mm
|
|
|
Weight
|
900g (1.98 lb)
|
|
