YBOTECH MPC-5V1500 1500L 2-8℃ Lab Refrigerator is suitable for installation indrug stores, pharmaceutical companies, hospitals, laboratories, epidemic preventioon centers and clinics.
health_and_safetySAFETY
- Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
- Capable of alerting failures due to high and low temperature sensor effor, door ajar, power failure and low battery.
view_moduleRELIABILITY AND KEY FEATURES
- High efficiency specialty compressor with known field reliability.
- Permanently lubricated cooling fan for safety and longevity.
- Forced-air cooling with optimized air distribution system designed.
- To achieve maximum temperature uniformity and stability.
- Optimized refrigeration system design for more effective cooling and speedy recovery.
- Temperature variation within +/-3℃
- Temperature range 2-8℃
- Microprocessor control, digital display, and temperature adjustment with an increment of 0.1℃
- Large digital display screen.
buildERGONOMIC DESIGN
- Optimized space utilization desigh with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access.

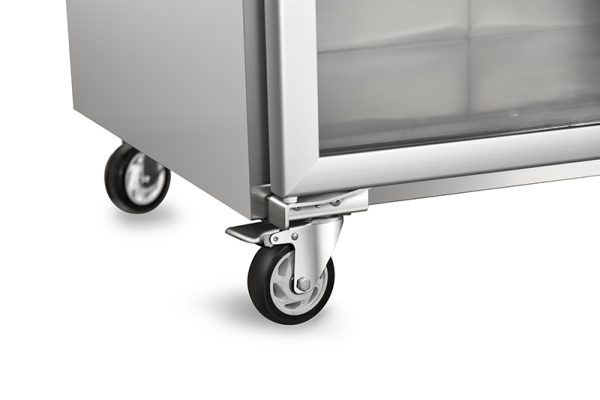

- Caster design and leveling legs LED interior light.

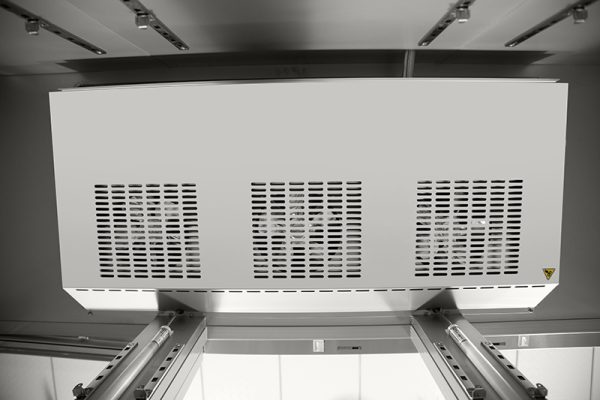

cachedFORCED AIR-COOLING SYSTEM
- Advanced forced cooling system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced aircooling system to assure no-frost inside.
settingsCHARACTERISTIC FUNCTION
- Safety door lock design to avoid door ajar.
- big digital screen display for easy observation.
- Optional testing hole.
- Adjustable shelves.
- Inner light design for a clear display.
Technical Specification
| 1500L 2~8℃ Lab Refrigerator | ||
| Model | MPC-5V1500 | |
| Specificaitons | Shelf/drawer | Shelves/12 |
| Cooling method | Forced Air Cooling System | |
| Defrost | Auto | |
| Refrigerant | R134a | |
| Power consumption(kWh/24h) | 8 | |
| Noise（db) | 55 | |
| Ambient temperature（℃） | 10～32℃ | |
| Temperature range（℃） | 2~8℃ | |
| Cooling system | Compressor brand/QTY | Secop/1 |
| Sensor Type | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency（V/Hz) | 220/50Hz |
| Power（W) | 1040W | |
| Current（A) | 5.4A | |
| Material | Inside material | stainless steel |
| Outside material | stainless steel | |
| Insulation | PURF | |
| Size | Capacity（L/cu.ft) | 1500/52.97 |
| NT./GT.（kg) | 245/280 | |
| Exterior size(W*D*H)(mm) | 1800*775*1965 | |
| Interior size(W*D*H)(mm) | 1680*595*1312 | |
| Package size(W*D*H)(mm) | 1880*820*2150 | |
| CBM | 3.31 | |
| 20GP/40GP/40HQ | 6/14/14 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Thermostat failure | Y | |
| Backup battery failure alarm | / | |
| Condenser fault alarm | / | |
| Ambient Temperatures | / | |
| Voltage abnormality alarm | / | |
| Door ajar | Y | |
| System abnormal alarm | / | |
| Power failure backup system(alarm) | 8h | |
| Accessories | Foot | / |
| Castor | Y | |
| Outer door/Type | 3/Glass door | |
| Door Lock | 3 | |
| Test hole QTY/diameter | Optional | |
| Lamp | LED | |
| USB port | Optional | |
| Temperature recorder | Optional chart logger | |
| Remote alarm port | / | |
| RS232/485 port | Optional | |
