Automatic Dispenser & Diluter

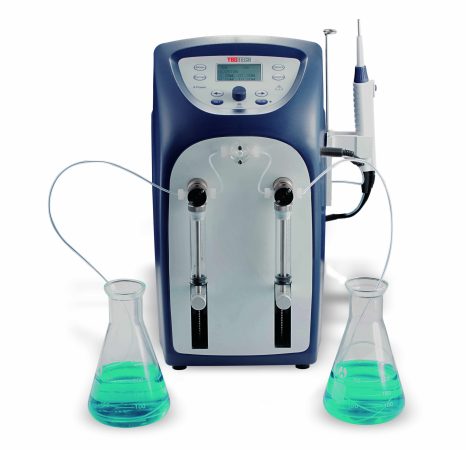

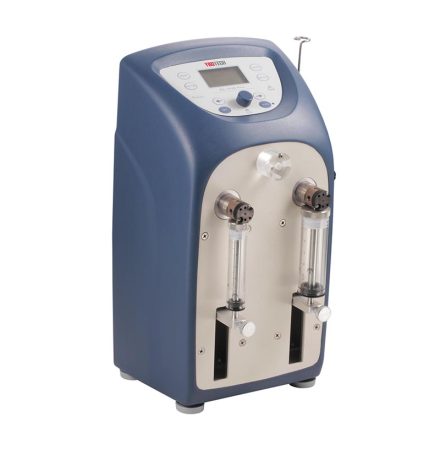

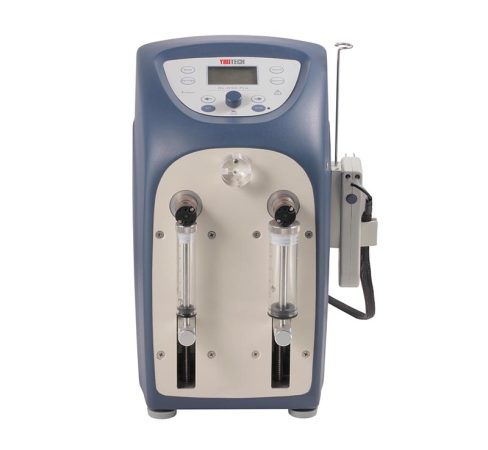

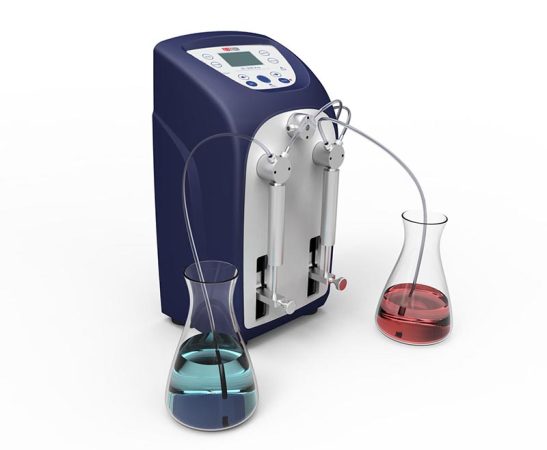

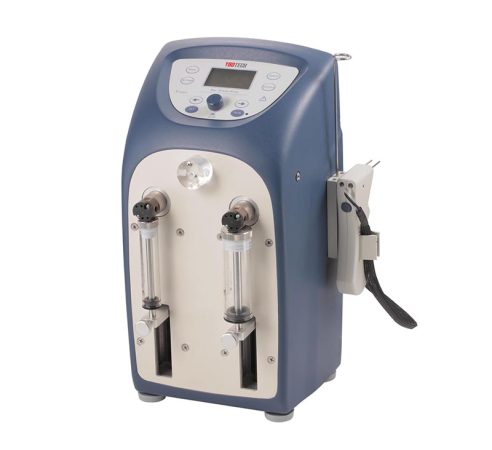

YBOTECH YB-D50-Pro Automatic Dispenser & Diluter is a highly precise syringe pump with a graphical user interface designed to quickly and easily dilute and dispense liquids. This positive displacement system provides better than 99% accuracy, independent of a liquid’s viscosity, vapor pressure and temperature. The inert fluid path minimizes sample carry over and improves compatibility with harsh chemicals.

Feature
gradeMain Features:
  1. It is ideal for dispensing and diluting applications;
  2. Five operating modes enabling fast and precise operation in priming, titration, volume measurements as well as in diluting, dispensing, mixing, pipetting and rinsing;
  3. Easy-to-use pipelines and easy-to-switch modes;
  4. The high torque, precision stepper motors provide excellent accuracy;
  5. Full range from 250µL to 25mL;

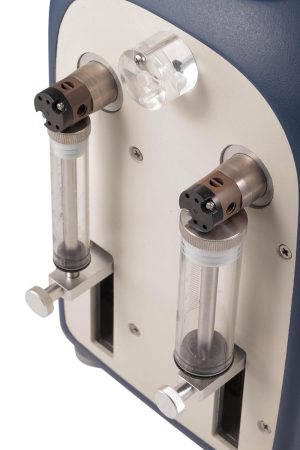

  6. Compatible with 7 kinds of Syringes;
  7. Adjustable pipetting speed for 9 stages.

Automatic Dispenser & Diluter

Technical Specification

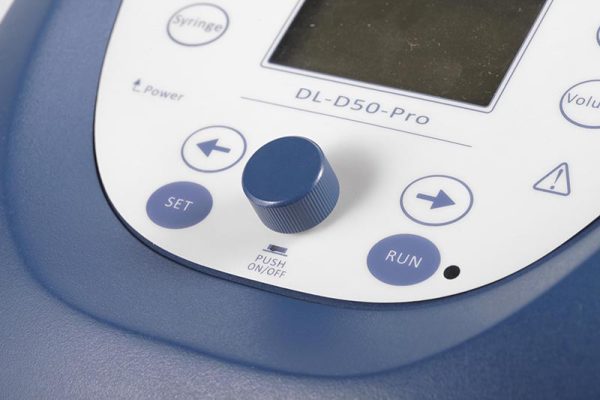

Model DL-D50-Pro
Accuracy ±1%
Precision ± 0.2%
Flow Rate 0.003-6000µL/s (depending on the syringe that is selected)

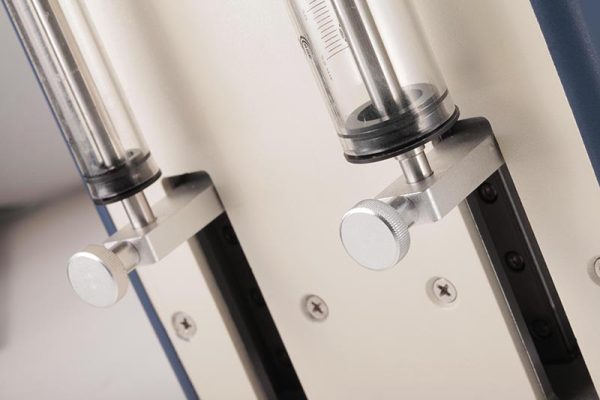

Compatible Syringes 250, 500µL, 1, 2.5, 5, 10, 25mL

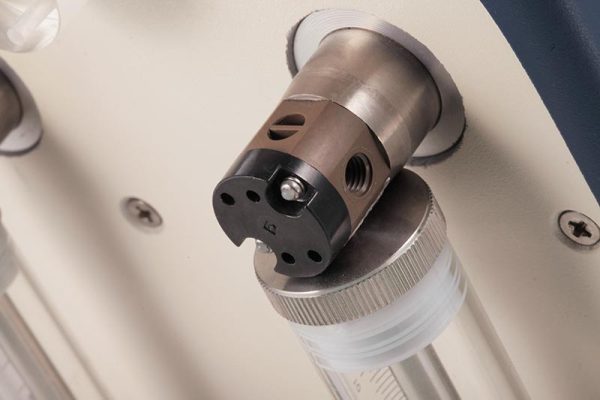

Fluid Path Borosilicate, PTFE, CTFE
Voltage 100-240VAC
Frequency 50/60Hz
Dimension (W×D×H) 190×180×350mm
Weight 4.5kg
Max. Relative Temperature 5-40ºC
Max. Relative Humidity 80%RH
