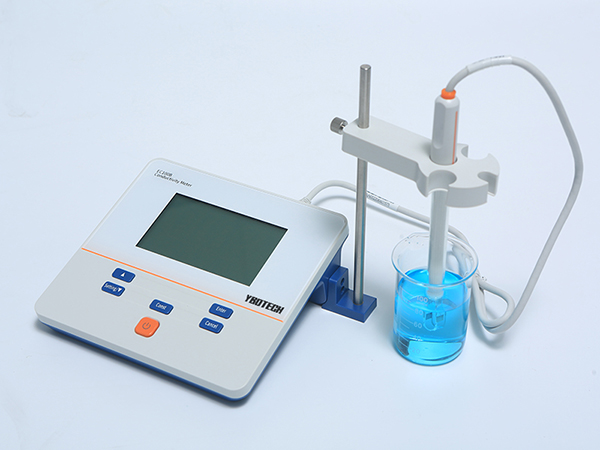

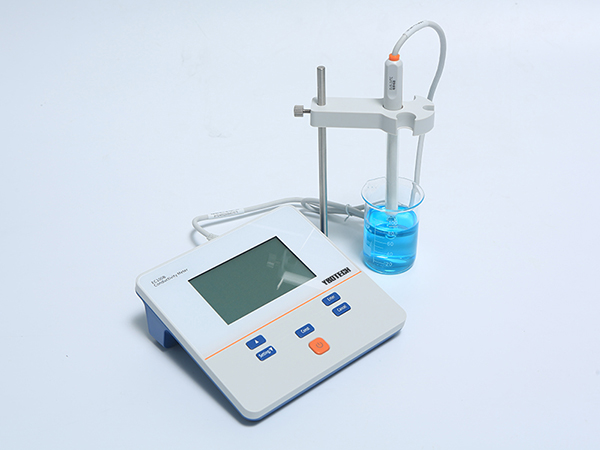

EC100B Conductivity Meter

GENERAL FEATURES

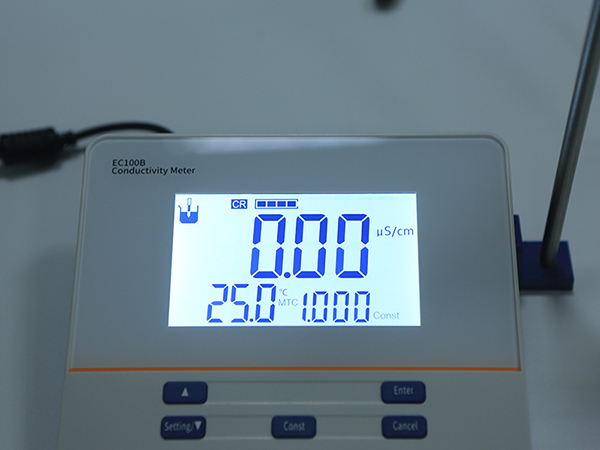

LCD display screen, 6.0 inches.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
Cell constant is settable.
Manual temperature compensation ensures accurate results.

Model		EC100B
Parameters		EC
Conductivity	Range	0.00 μS/cm to 100 mS/cm
	Resolution	0.01 μS/cm minimum, various with range selection
	Accuracy	±1.5% FS
	Reference Temperature	25 ºC
Measurement	Reading Mode	Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	MTC

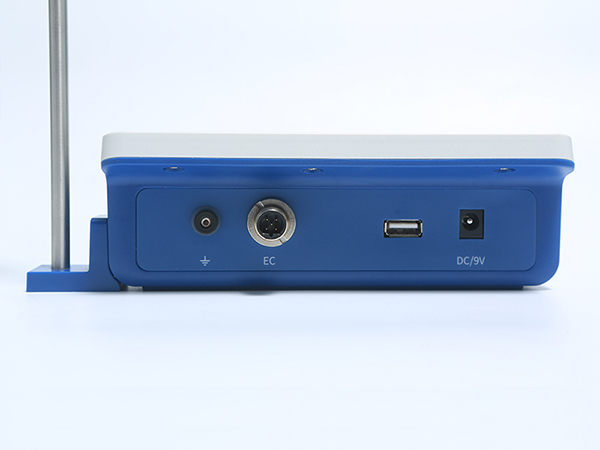

Inputs	Conductivity Probe	5-pin aviation connector
Display options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600 sec., off
	IP Rating	IP54

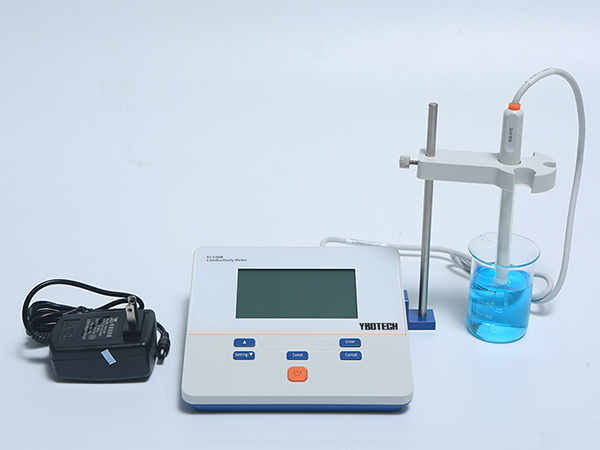

General	Power	AC Adapter, 100-240V AC input, DC9V output
	Dimensions	200×160×63 mm
	Weight	600g (1.32 lb)
