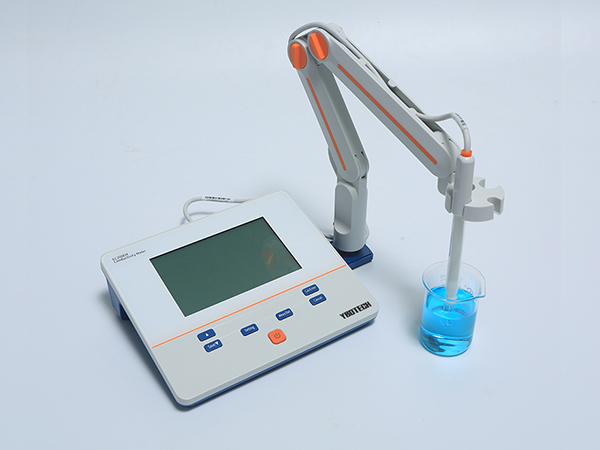

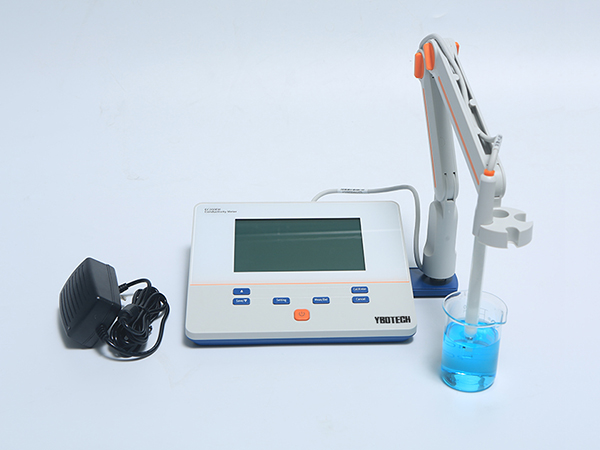

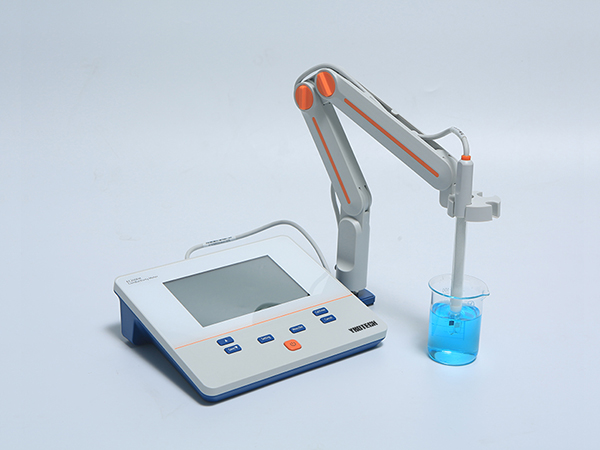

EC200EM Conductivity Meter

GENERAL FEATURES

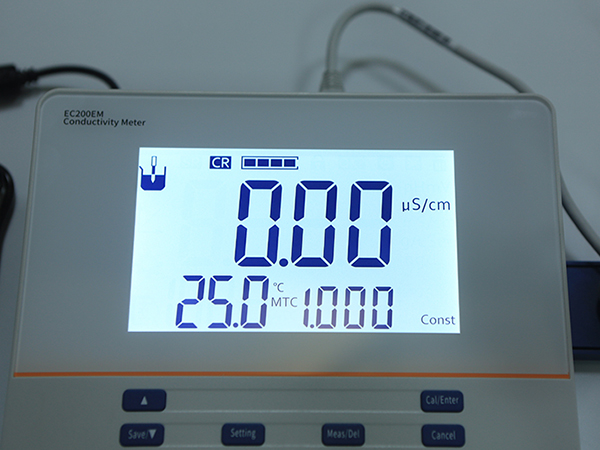

High resolution LCD display screen, 6.0 inches.
Multi-reading feature allows auto-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 50 sets for each parameter.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1 point calibration with Standard Recognition.
Cell constant is settable.

Model		EC200EM
Parameters		EC(TDS)
Conductivity	Range	0.00 μ S/cm to 200 mS/cm
	Resolution	0.01 μ S/cm minimum, various with range selection
	Accuracy	± 1.0% FS
	Reference Temperature	25 ºC
	Calibration Points	Up to 1
	Standard Recognition	84 μ S/cm, 1413 μ S/cm, 12.88mS/cm
Measurement	Reading Mode	Auto-Read, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	MTC
Data management	Data Storage	50 results each

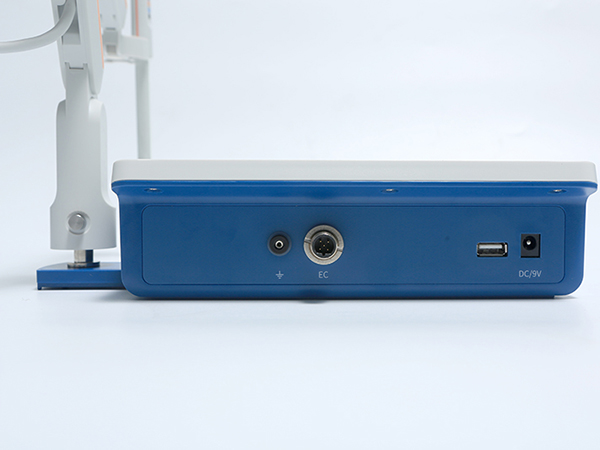

Inputs	Conductivity with Temp. Probe	5-pin aviation connector
Display options	Backlight	Yes
	Auto Shutdown	300, 600, 1200, 1800, 3600sec., off
	IP Rating	IP54
General	Power	AC Adapter, 100-240V AC input, DC9V output
	Dimensions	242 x 195 x 68 mm
	Weight	900g (1.98 lb)
