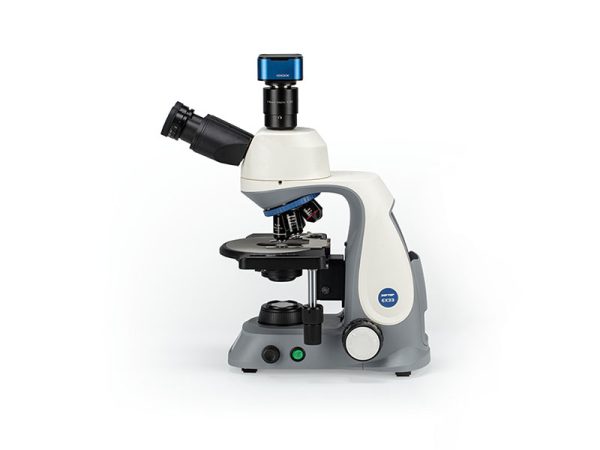

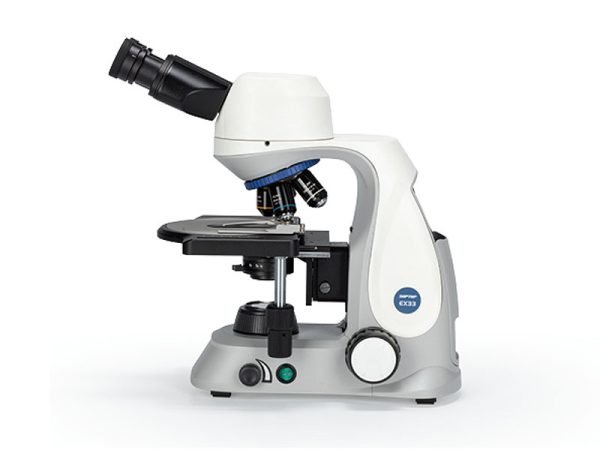

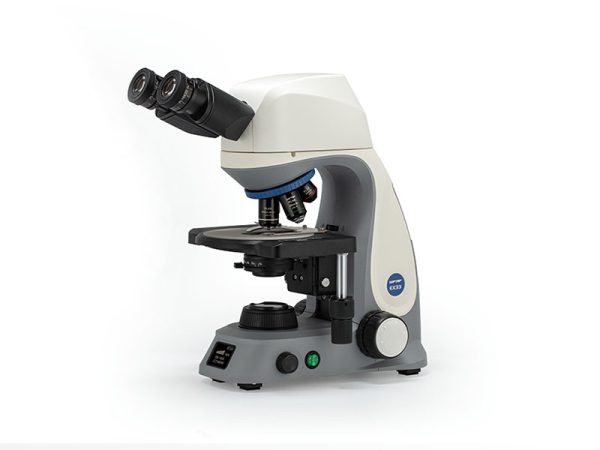

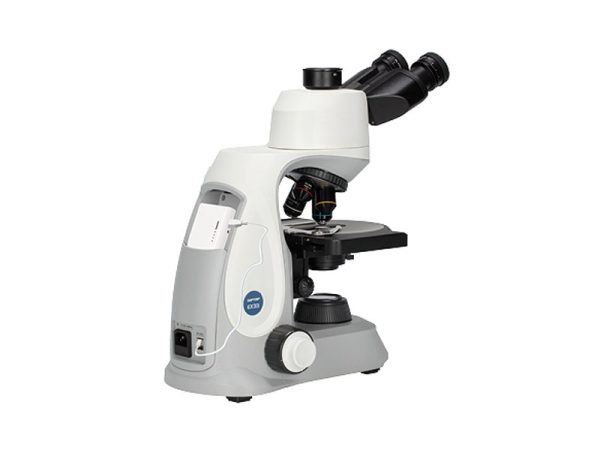

EX33 Biological Microscope

The new EX33 biological microscope is designed for universities or laboratories of biomedicine and other fields which can be used for teaching experiments and medical testing.

Inquire

Brochure Download

Feature

EX33 Biological Microscope

Intelligent, convenient, comfortable and efficient

The new EX33 biological microscope, designed for universities or laboratories of bio-medicine and other fields, can be used for teaching experiments and medical testing.

Innovative design style, high quality and convenient, to bring you a simple and comfortable use experience;
Excellent optical system and complete accessories, you can achieve a variety of observation such as light and dark field and phase contrast, to presenting you with wonderful images beyond your expectations, With intelligent lighting management system and ECO function, make your work easy and efficient.

Technical Specification of EX33 Biological Microscope

Model	EX33 Biological Microscope
Optical system	Infinity color corrected optical system

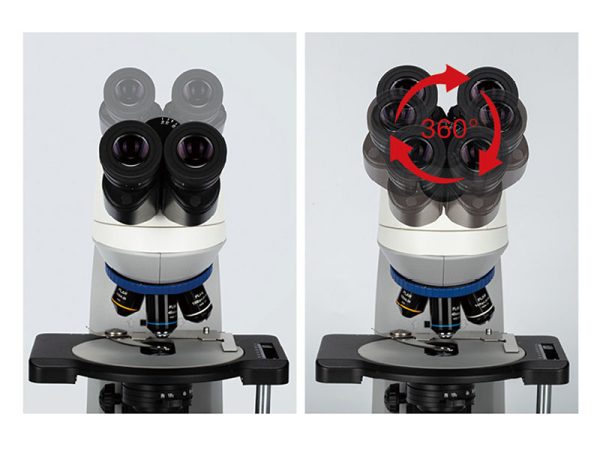

Viewing Head	30° gemel binocular, 360° rotatable, adjustable eye-point height can adapt to operators of different heights.
	30° gemel trinocular tube, 360° rotatable, spectroscopical ratio R:T=50:50 or 80:20, adjustable eye-point height can adapt to operators of different heights.
	30° gemel trinocular tube, built-in gemel digital viewing head, 360° rotatable, adjustable eye-point height can adapt to operators of different heights. Built-in 6.3M, 12M, 20M digital modules for choice, USB 3.0 output.
	30° inclined, built-in gemel digital head, 360° rotatable, adjustable eye-point height can adapt to operators of different heights. Built-in 16M and 20M digital camera for optional, WIFI or RJ45 network port output. Support remote full resolution photo, support Hotspot/Client mode switch, support multi-viewer.
Eyepiece	Wide field plan eyepiece PL10X/20mm, with reticle, diopter adjustable
Eyepiece	Wide field plan eyepiece PL10X/22mm, with reticle or grid plate, diopter adjustable
Objective	Infinity plan achromatic objective (2X, 4X, 10X, 20X, 40X, 60X, 100X)
	Infinity plan achromatic phase objective (10X, 20X, 40X, 100X)
	Infinity semi-apochormatic fluorescence objective (4X, 10X, 20X, 40X, 100X)
Nosepiece	Quintuple nosepiece
Nosepiece	Quintuple nosepiece (Brightness memory)

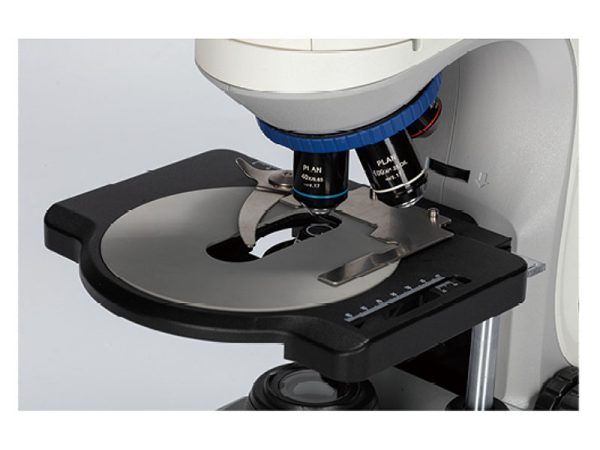

Stage	Double layers mechanical cermic paint stage, precision: 0.1mm (X-axis rackness); Clips for double sliders, moving range 78mmx51mm
Condenser	N.A.1.25 Koehler illuminator condenser (with socket for phase contrast and dark field accessories) with aperture digphargm.
Single-band LED fluorescent reflection illumination system	B4 TB-LED fluorescent module for TB, with intensity adjust knob, BF/FL switching knob, central wavelength 455mm
	B1 band pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 470mm
	B2 band pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 470mm
	G1 band pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 560mm
	UV4 long pass filter LED fluorescent module, with intensity adjust knob, BF/FL switching knob, central wavelength 385mm
Illumination system	100V-240V External transformer, 3W LED with continuous intensity control. Type-c interface allows portable battery as a power source. USB port supports the microscope to charge a phone or tablet. With ECO function. The body can supply power to fluorescent illuminator and WIFI camera module.
Illumination system	100V-240V External transformer, 3W or 5W LED with continuous intensity control. Type-c interface allows portable battery as a power source. USB port supports the microscope to charge a phone or tablet. With ECO function. LCD display, objective brightness memory and color temperature adjustment function, the adjustment range: 3000K-7000K. The body can supply power to fluorescent illuminator and WIFI camera module.
Camera accessories	0.35X, 0.5X, 0.65X, 1X camera adapter, focusing adjustable.
Other accessories	Frosted glass accessories, Dark-field accessories, phase contrast accessories, color filter, telescope (Φ30), high precision type/general type micrometer with 0.01mm scale value.
