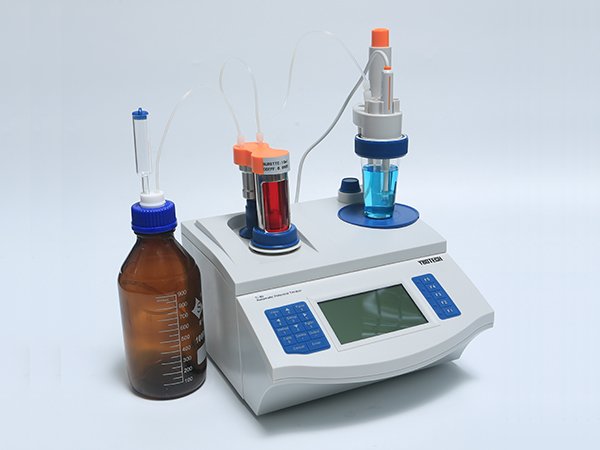

Ti-40 Automatic Potential Titrator

Ti-40 Automatic Potential Titrator

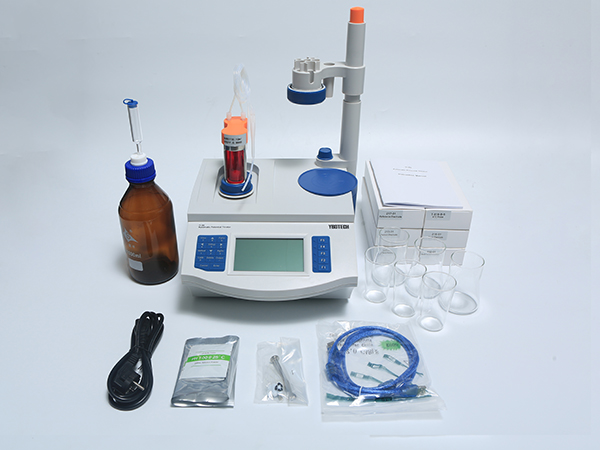

  • 10ml burette
  • 232-01 referenc electrode
  • 213-01 platinum electrode
  • 216-01 silver electrode
  • 217-01 referenc electrode
  • 231-01 pH indicator electrode
  • T-818-B-6 Temperature probe
  • NIST pH standard solution(4.01, 7.00, 10.01), 50ml/vial

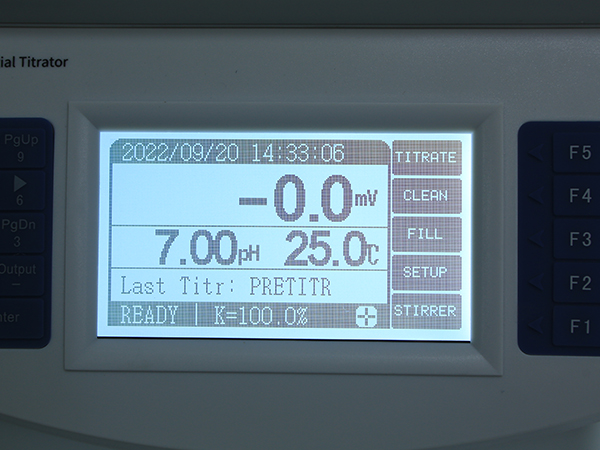

  • LCD display screen and smart guide system.
  • Titration methods, curves and results are displayed in detail.
  • Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
  • Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
  • pH calibration and measurement are supported.
  • Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.

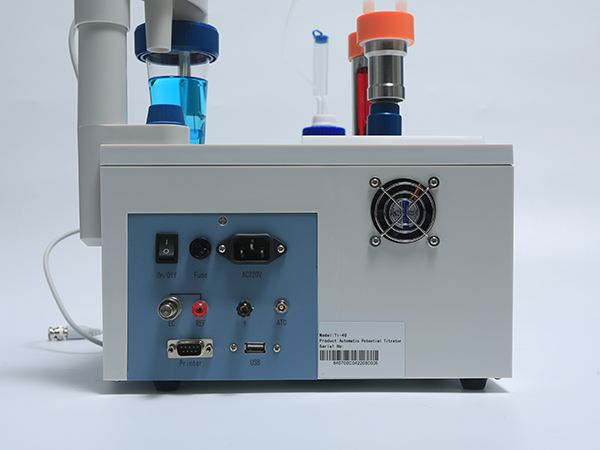

  • Data can be easily transferred to printer via RS-232 communication interface..
  • Titrator can be controlled by computer via USB or RS-232 communication interface.

Product specifications

Model Ti-40
Burette Repeatability 0.2%
Accuracy 10ml Burette: ±0.025ml;
20ml Burette: ±0.035ml
Resolution 10ml Burette: 1/10000;
20ml Burette: 2/10000
Mechanical Unit Resolution 1/30000
Measuring Unit Range (-1800.0~1800.0) mv, (0.00~14.00)pH
Resolutions 0.1mV, 0.01pH
Accuracy pH: ±0.01pH mv: ±0.03%FS
Fluctuation (±0.3mV±1bit) /3h
Temp. Compensation Range (-5.0~105.0)  ºC
Resolutions 0.1 ºC
Accuracy ±0.3 ºC
General Power Supply AC Adapter, 100-240V AC input, DC24V output
Dimension (mm)& Weight (kg) 340×400×400; 10kg
